1 Series 135is (N54) Coupe
1

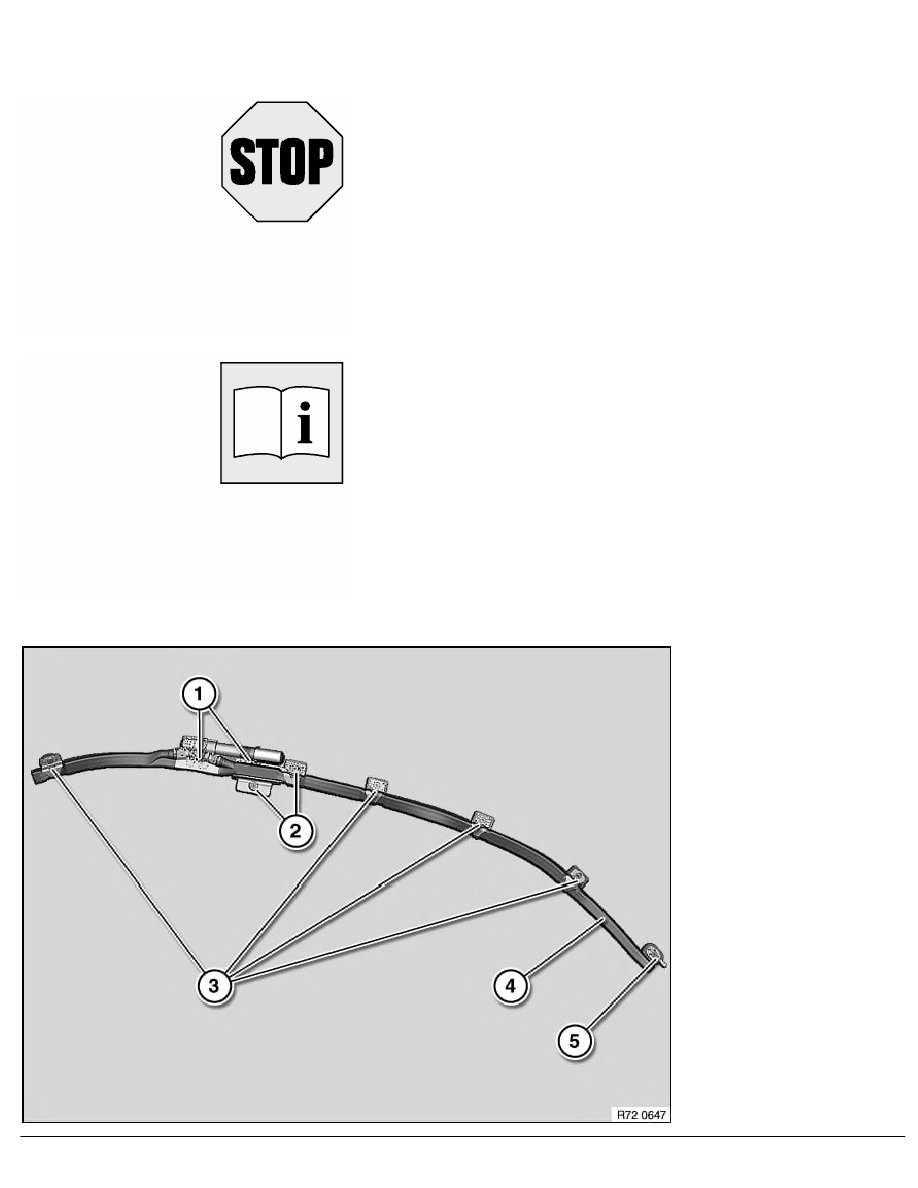

Screw connection, gas generator
4
Folding pack, head airbag
2
Screw connection, ramp, B-pillar
5
Anchor fittings, A-pillar
3
Holders, folding pack, screwed
Release screws (1) from folding pack holders.
Tightening torque 72 2 04AZ
.
Release screw (2) on end fitting.
Tightening torque 72 2 05AZ
.
Installation:
If screws (1) and (2) slip, coat them with Loctite.
Release screw (1) from folding pack holder.
Tightening torque 72 2 04AZ
.
Installation:
Coat screws (1) with Loctite if they slip.
Unlock plug connection (1) and disconnect.
Release screws (2).
Tightening torque 72 2 03AZ
.
Release screw (3) on folding pack holder.
Tightening torque 72 2 04AZ
.
Release screws (4) and remove ramp on B-pillar for folding
pack.
Tightening torque 72 2 06AZ
.
Remove gas generator with head airbag.
Installation:
The head airbag must be noiseless when installed.
RA Removing and installing or replacing left or right head airbag
