1 Series E87 116i (N45T) 5-door
61 31 079
Removing and installing/replacing switch for
hazard warning flashers/central locking
Necessary preliminary tasks:
•
Remove center fresh air grill

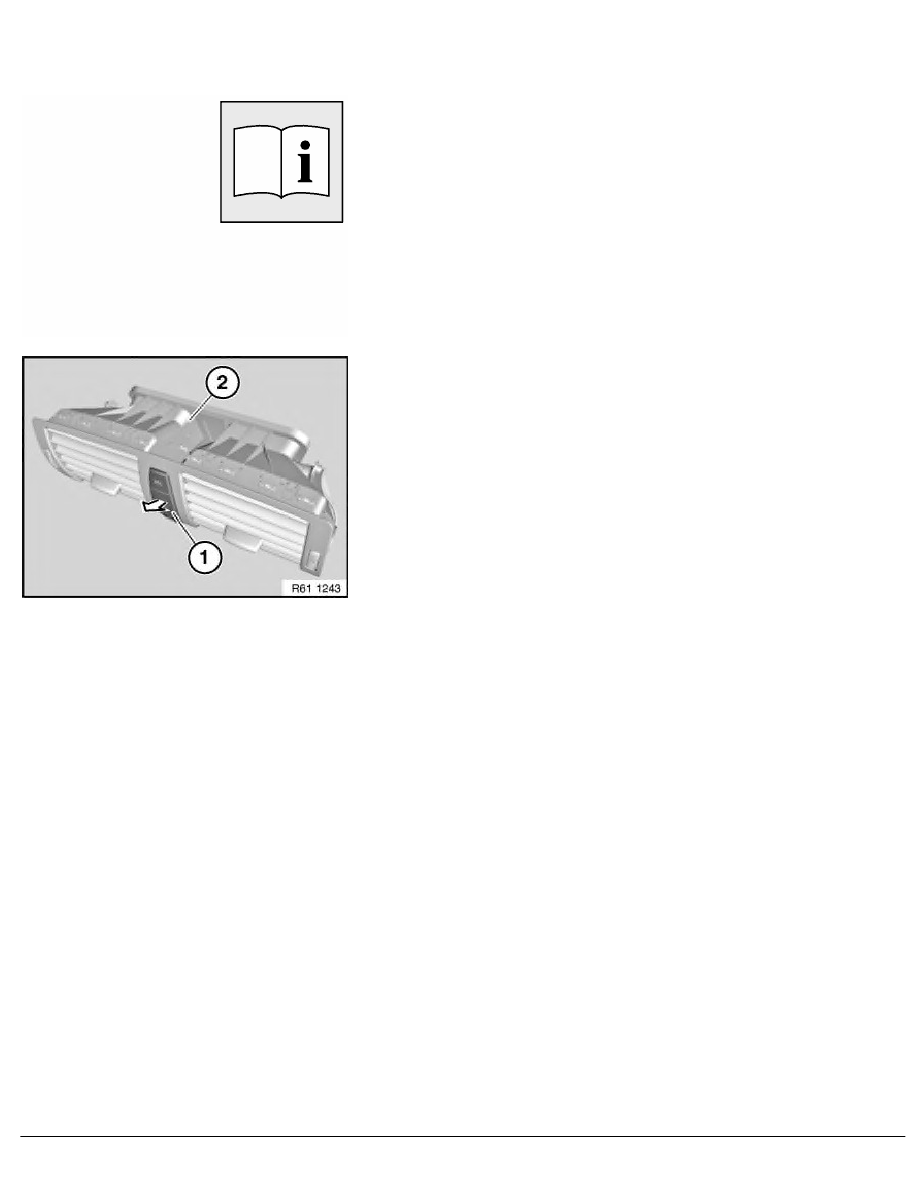

Unlock switch for hazard warning flashers/central locking (1) and
unclip in direction of arrow from center fresh-air grill (2).
RA Removing and installing/replacing switch for hazard warning flashers/central loc
BMW AG - TIS
17.01.2013 21:18
Issue status (12/2007) Valid only until next DVD is issued
