1 Series E87 118i (N46) 5-door
Important!
Mount for front light cluster (4) on headlight side loose.

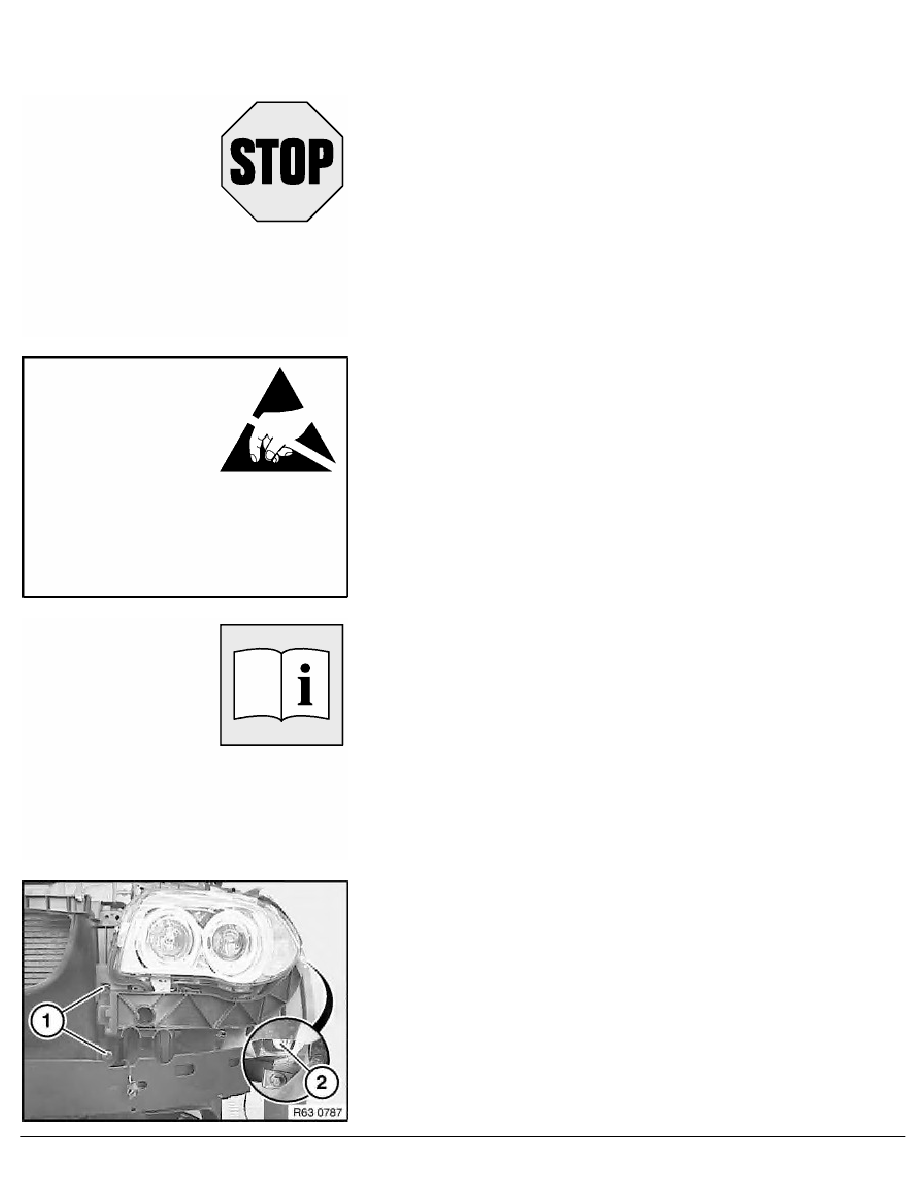

Release screw (1). Tightening torque
63 12 2AZ
.
Release screw (2). Tightening torque
63 12 3AZ
.
Pull headlight (3) forwards slightly.
Build date up to 03/2007:
Disconnect plug connection (1).
Unclip wiring harness (2).
Detach wiring harness fasteners (3).
Remove headlight (4) towards front.
Build date after 03/2007:
Disconnect plug connection for headlight and remove headlight
towards front.
Replacement:
•
Remove headlight holder
•
Remove ignition unit with bulb for xenon headlight
•
Remove control unit for xenon headlights
•
If necessary, remove bulbs.
RA Removing and installing or replacing left headlight (xenon headlight)
