1 Series 125i (N52K) Convertible
51 11 180
Removing and installing / replacing trim grille
in bumper trim
Special tools required:
•
00 9 317

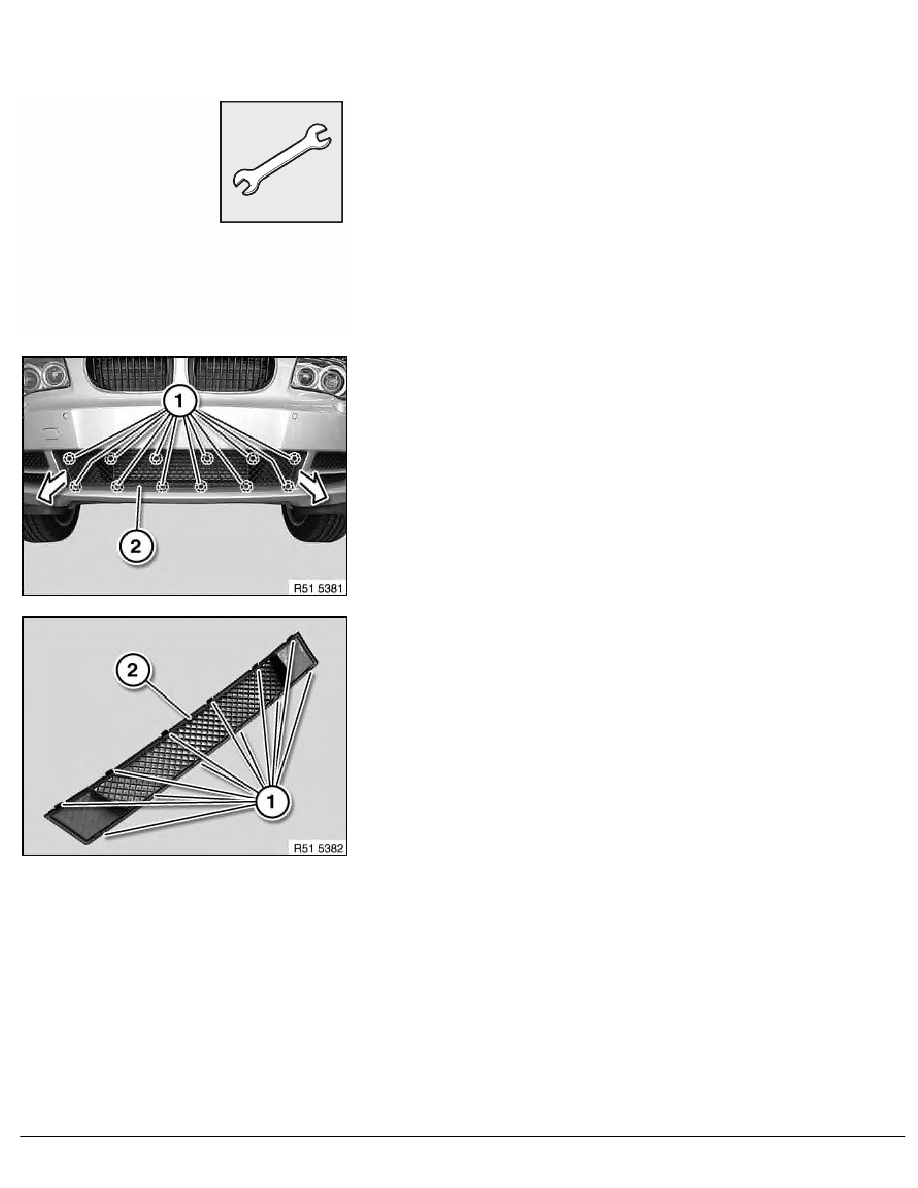

Release catches (1) with special tool 00 9 317 and remove trim
grille (2) from bumper trim towards front.
Installation:
Catches (1) on trim grille (2) must not be damaged.
RA Removing and installing / replacing trim grille in bumper trim
BMW AG - TIS
17.01.2013 11:33
Issue status (12/2007) Valid only until next DVD is issued
