1 Series 125i (N52K) Convertible
51 16 365
Removing and installing/replacing glovebox
lid
Warning!
Read and comply with safety regulations for handling airbag
modules and pyrotechnical belt pretensioners.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
•
Remove trim for instrument panel, bottom left

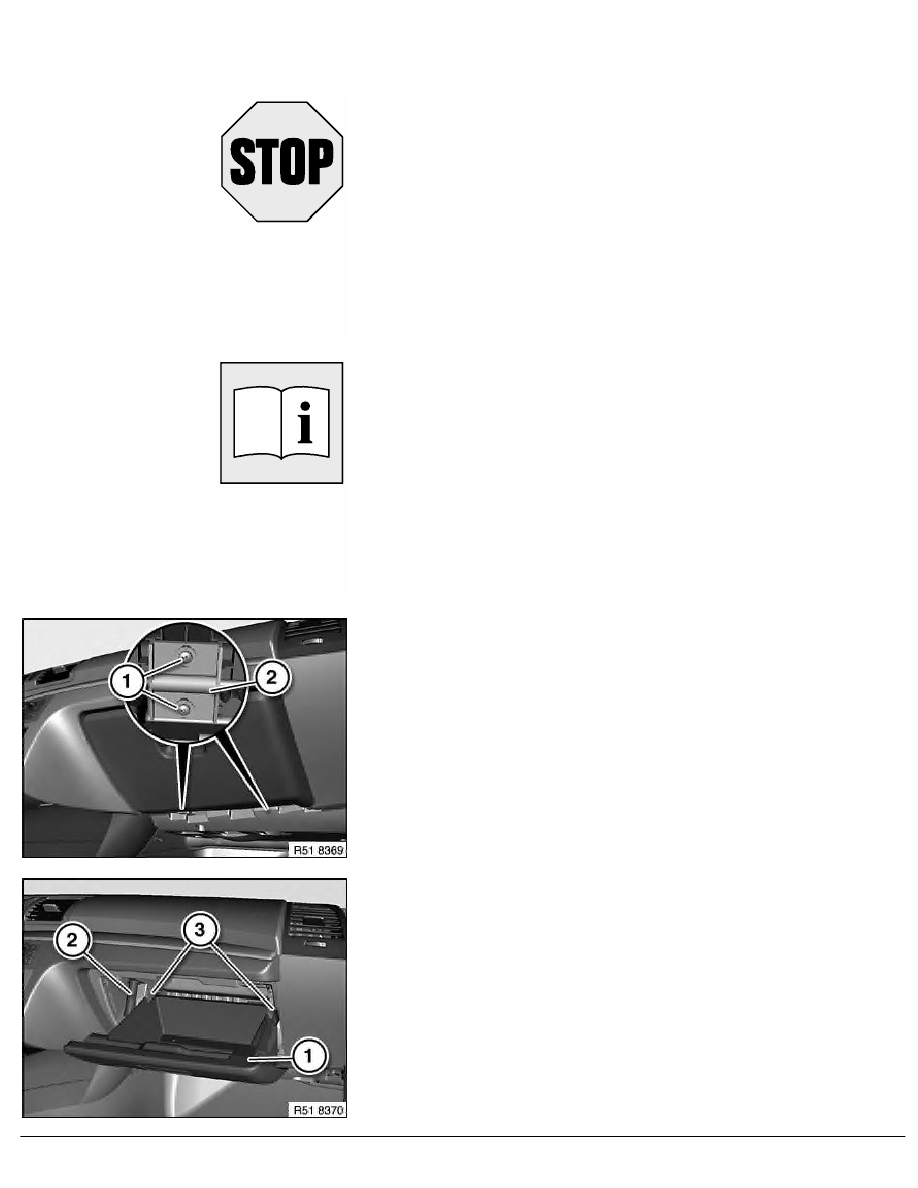

Release screws (1).
Remove hinge (2).
Open glovebox cover (1).
Unclip damper (2) on glovebox cover (1) towards rear.
Press in clips (3) and remove glovebox cover (1).
If necessary, unlock and disconnect plug connection on airbag
module.
RA Removing and installing/replacing glovebox lid
