1 Series 125i (N52K) Convertible
51 46 ...
Removing and installing/replacing upper
cross-member cover
Warning!
Risk of injury!
There is a danger of trapping when working in the area of the
convertible top system. Make sure convertible top is not
actuated during work.
Necessary preliminary tasks:
•
Removing air outlet grill
Note:
Prior to removing, pay attention to the exact installation position
with respect to the adjoining components.

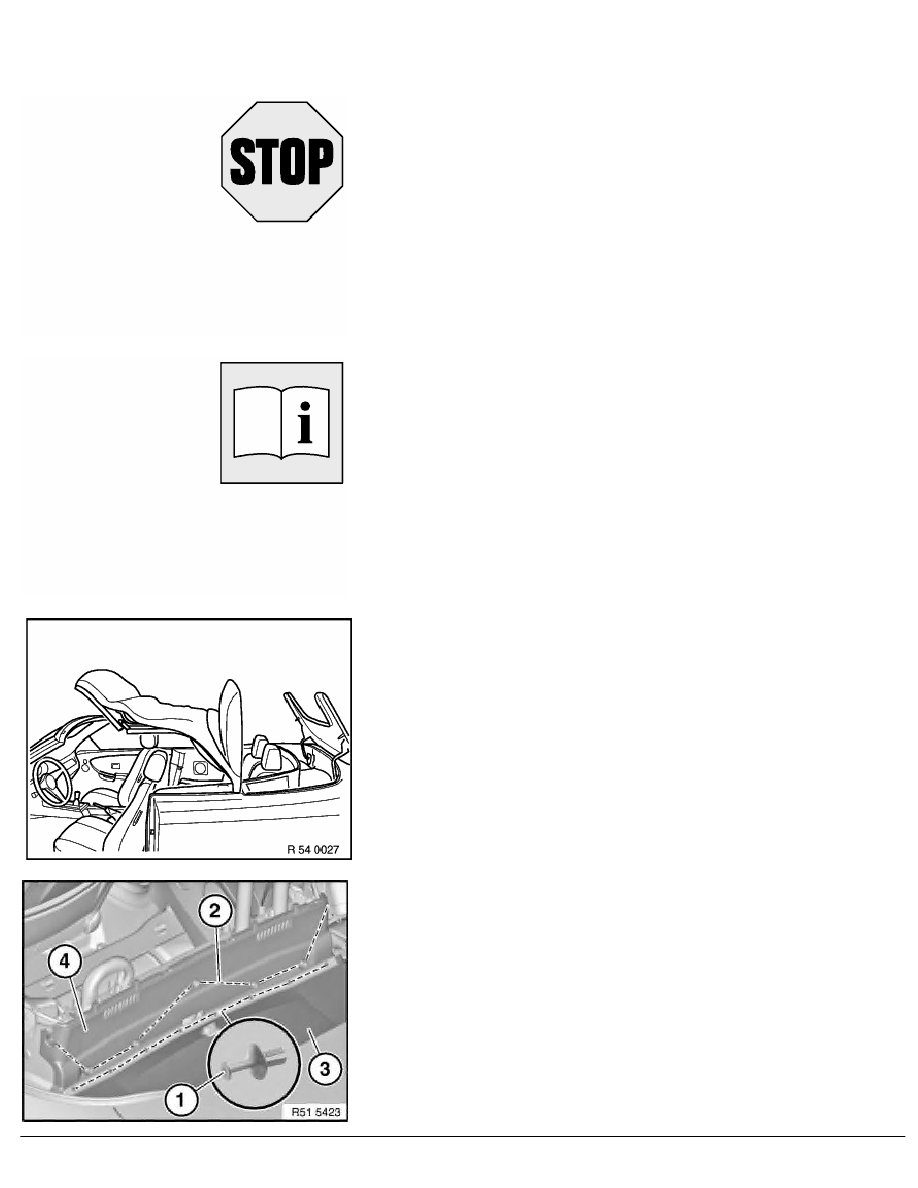

Move convertible top into position shown.
Lift clamping bracket and soft top compartment cover upright.
Release expansion rivets (1).
Release screws (2).
Raise panel for convertible top compartment (3) in covered area.
Feed out cross-member cover (4) towards top.
Installation:
Feed all screws/expander rivets onto cross-member cover (4).
Align cross-member cover (4) with rollover protection system and
secure with screws/expander rivets.
