3 Series E30 318i (M40) TOUR

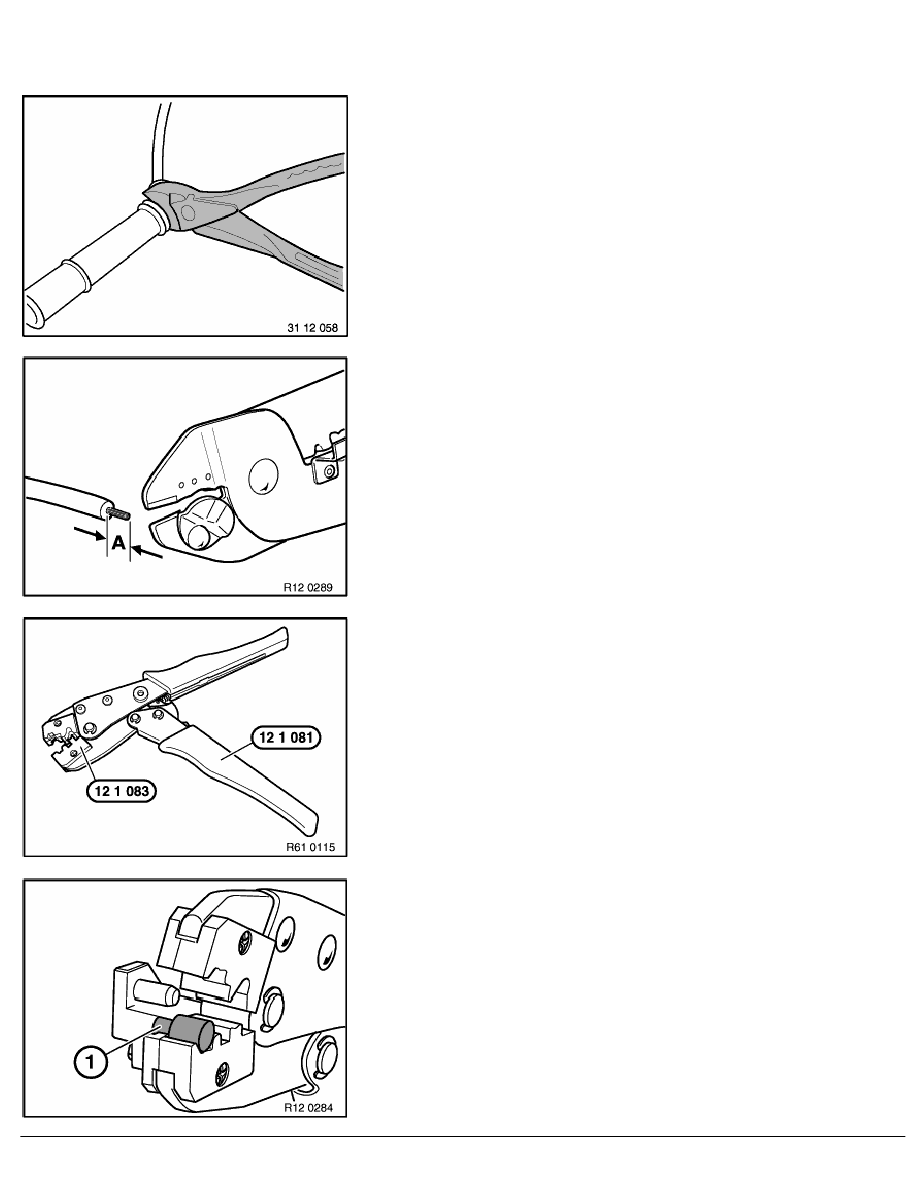

Preload contact by squeezing matrix in hand pliers. This secures
connector (1) in the matrix.
Insert insulation-stripped wires (1) firmly home in connector. Press
handles of pliers firmly together. Pliers open.
Remove crimped connector with ignition lead. Crimping of wires
(1) and insulation (2) (tension relief) must be uniform right around
circumference of connector.
Slide special tool 12 1 087 onto spark plug connector. Coat
ignition lead with special tool 12 1 088 (anti-friction coating). Insert
ignition lead in special tool 12 1 086. Insert ignition lead in spark
plug connector: adapter must audibly locate in spark plug
connector.
RA Replace one spark plug connector (M40, M42, M43, M44, M73).
