3 Series E30 318i (M42) CONVER
17 00 ...

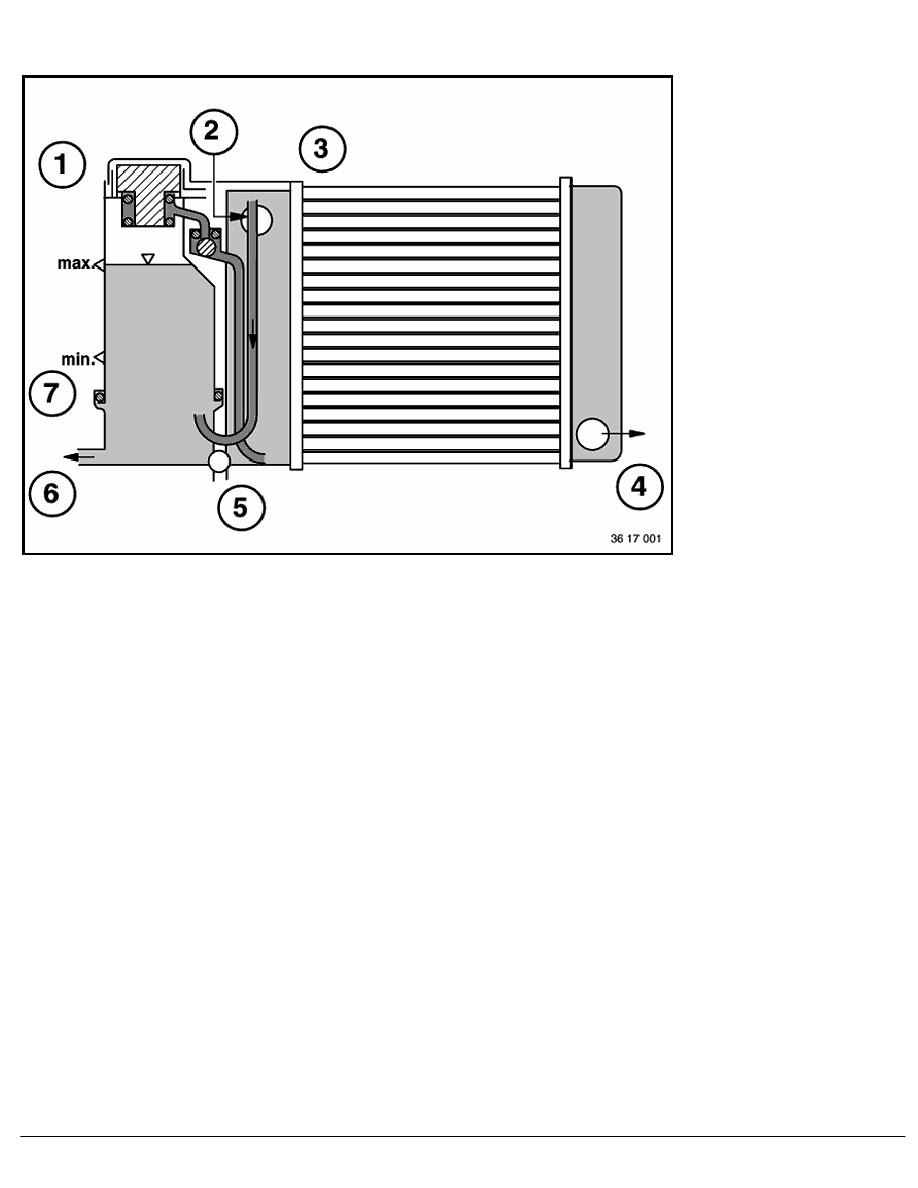

Auxiliary coolant circuit (M40, M42, M43, M44, M50)
1
Cap with pressure relief and vacuum valves
2
From engine
3
Vent pipe
4
To thermostat
5
Control pipe
6
To water pump
7
Fill level
RA Auxiliary coolant circuit (M40, M42, M43, M44, M50)
BMW AG - TIS
21.01.2013 05:03
Issue status (12/2007) Valid only until next DVD is issued
