3 Series E36 316g (M43) COMP
35 00 ...
Pedal assembly

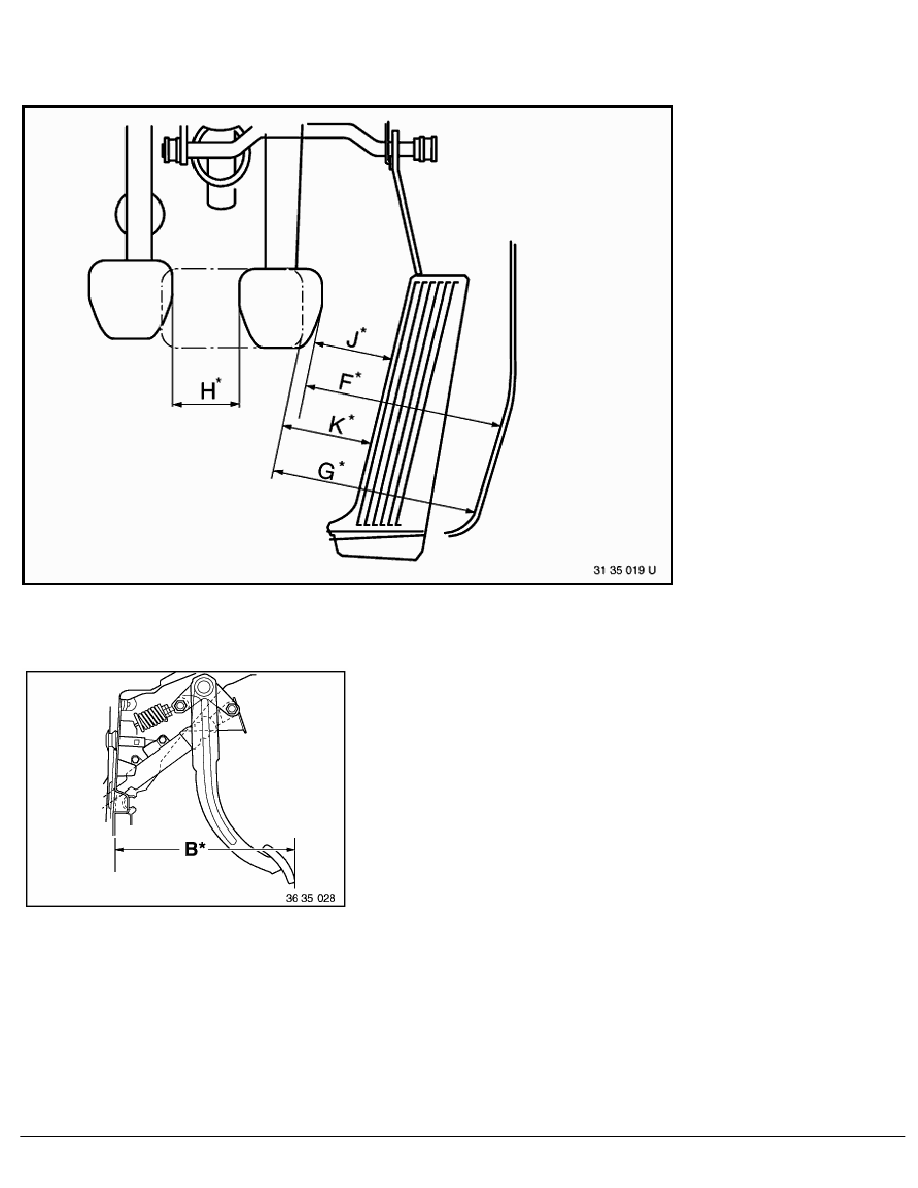

Inspection dimensions for gaps beside pedal:
Dimension H, J, K, F, G,
refer to Technical Data.
Inspection dimension (B) from underside of pedal to face wall for:
Clutch pedal (dimension B),
refer to Technical Data.
Brake pedal (dimension A),
refer to Technical Data.
RA Pedal assembly
