3 Series E36 316g (M43) COMP

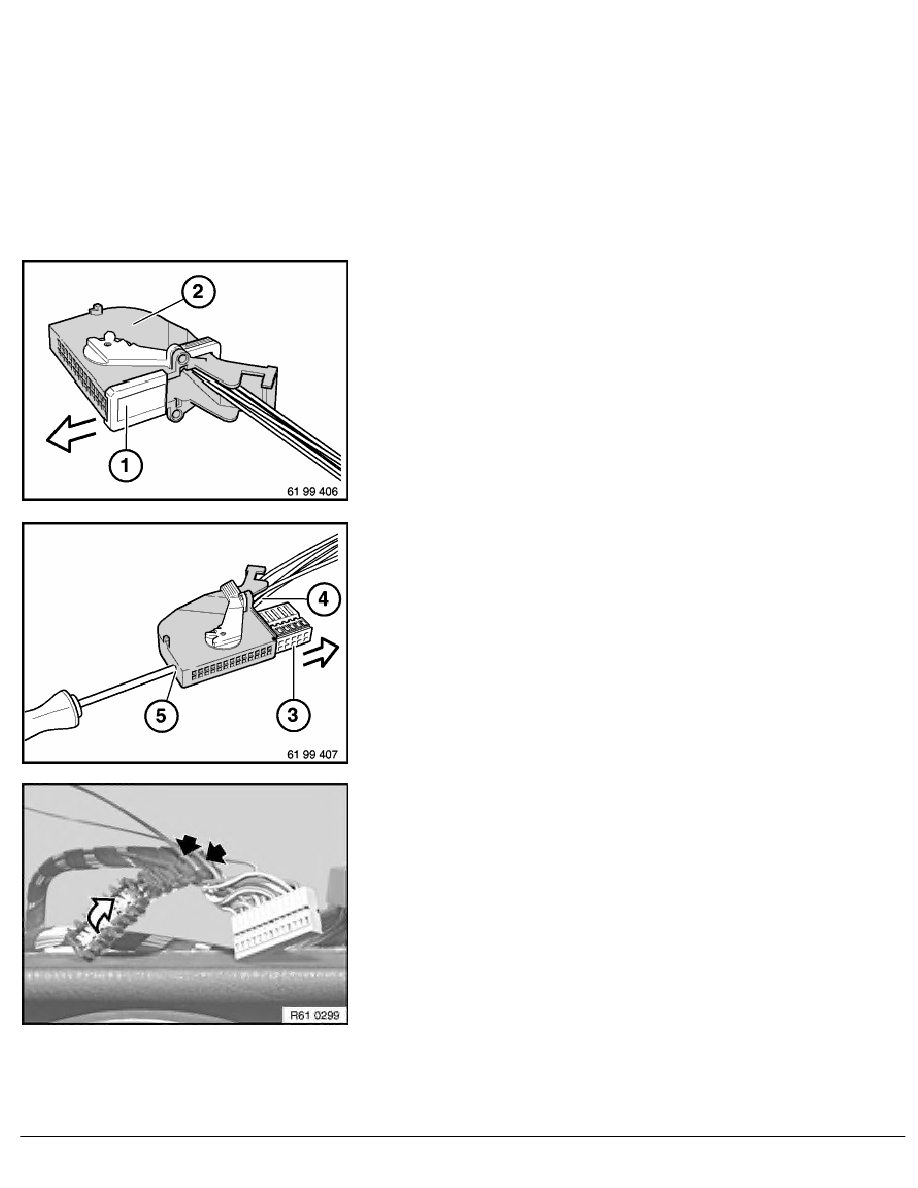

Fold over crimp connector and compress. At this point, the comb
connector cuts into the core of the wire, thereby establishing
contact.
Installation:
Compact, Z3
When replacing instrument carrier, convert and adjust coding
plug.
Refer to 62 10 000.
Tests 15 and 09
Sedan, coupé, touring, convertible
Code instrument carrier,
refer to DIS.
RA Replacing instrument carrier
