3 Series E36 316i (M40) SAL

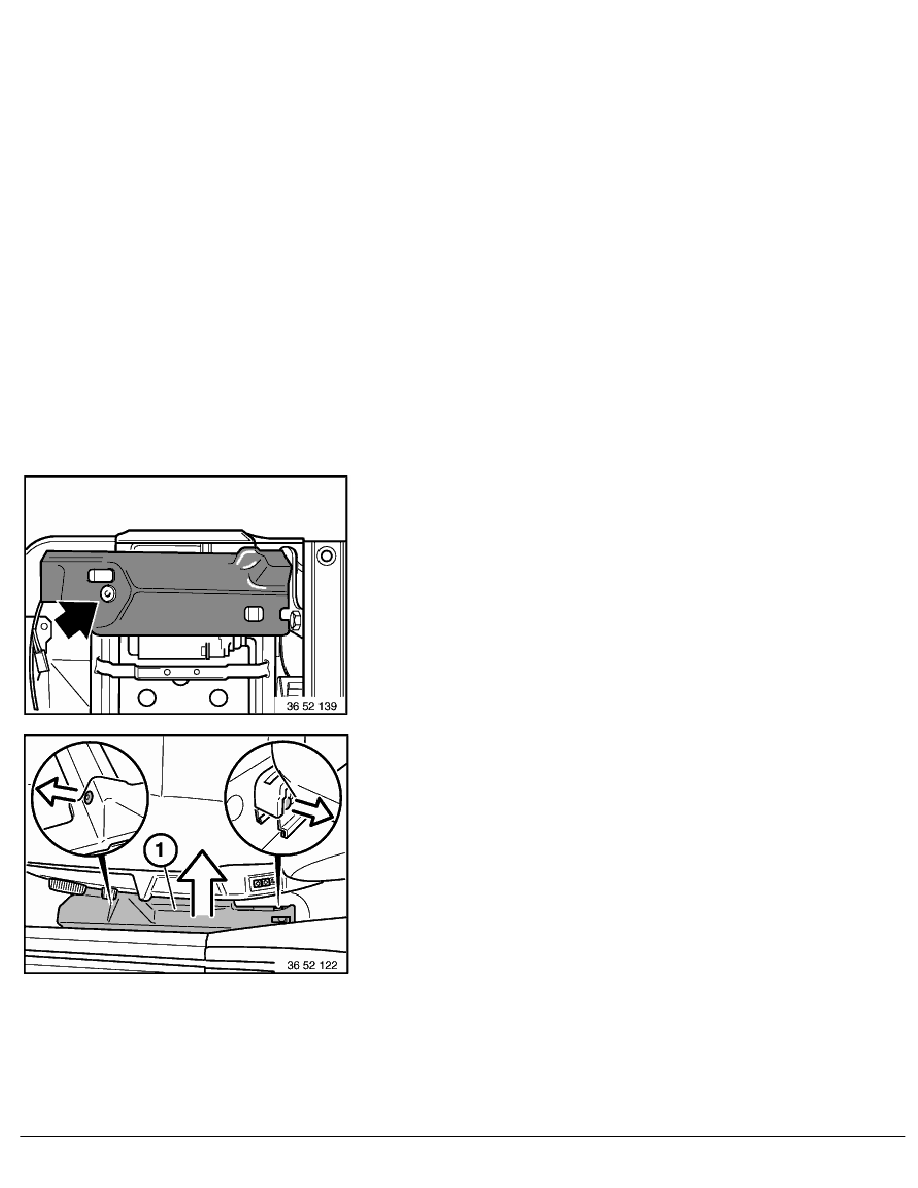

Unscrew screws (3 and 4) and remove rear end up/down control
drive.
Coupé:
Remove screw (2) and leave steel cable hanging on the cushion
shell.
Unscrew left and right bolts.
Pull off complete seat rails in forward direction.
Connect special tools 61 2 071 and 61 2 072 (adapter leads) on
white plug and 12 V power supply source.
Check function.
RA Removing and installing or replacing seat backrest frame on left or right front
