Cruise Control Switch Replacement - BMW E36 316i (M40)

Page 1
background image

61 31 018

Removing and installing/replacing cruise
control switch

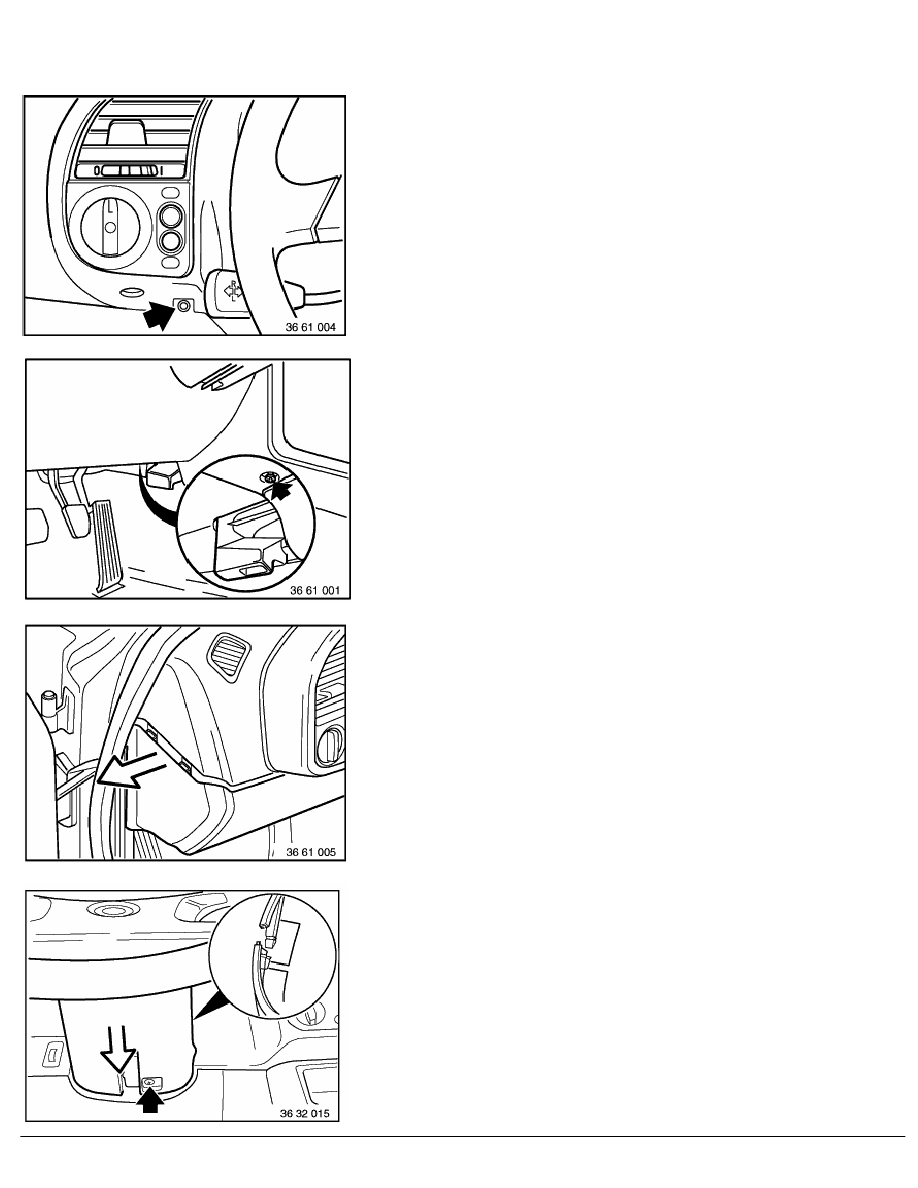

Unscrew screw.

Unscrew screw.

Pull bottom trim panel to the side out of the clips.

Remove screw and take off lower section of steering-column
panelling.

RA  Removing and installing/replacing cruise control switch

BMW AG - TIS

18.01.2013  08:17

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 1 -
