3 Series E36 316i (M43) COMP
11 7 450
Simulator
In conjunction with:
Standard workshop exhaust emission tester
Note:
For Bosch oxygen sensor
Engine:
M10, M20, M30, M40, M42, M43, M44, M50,
M52, M60, M62, M70, M73, S14, S38,
S50B30, S50B32, S50US, S52US
Storage location:
K 102
SI number:
2 07 93(700)

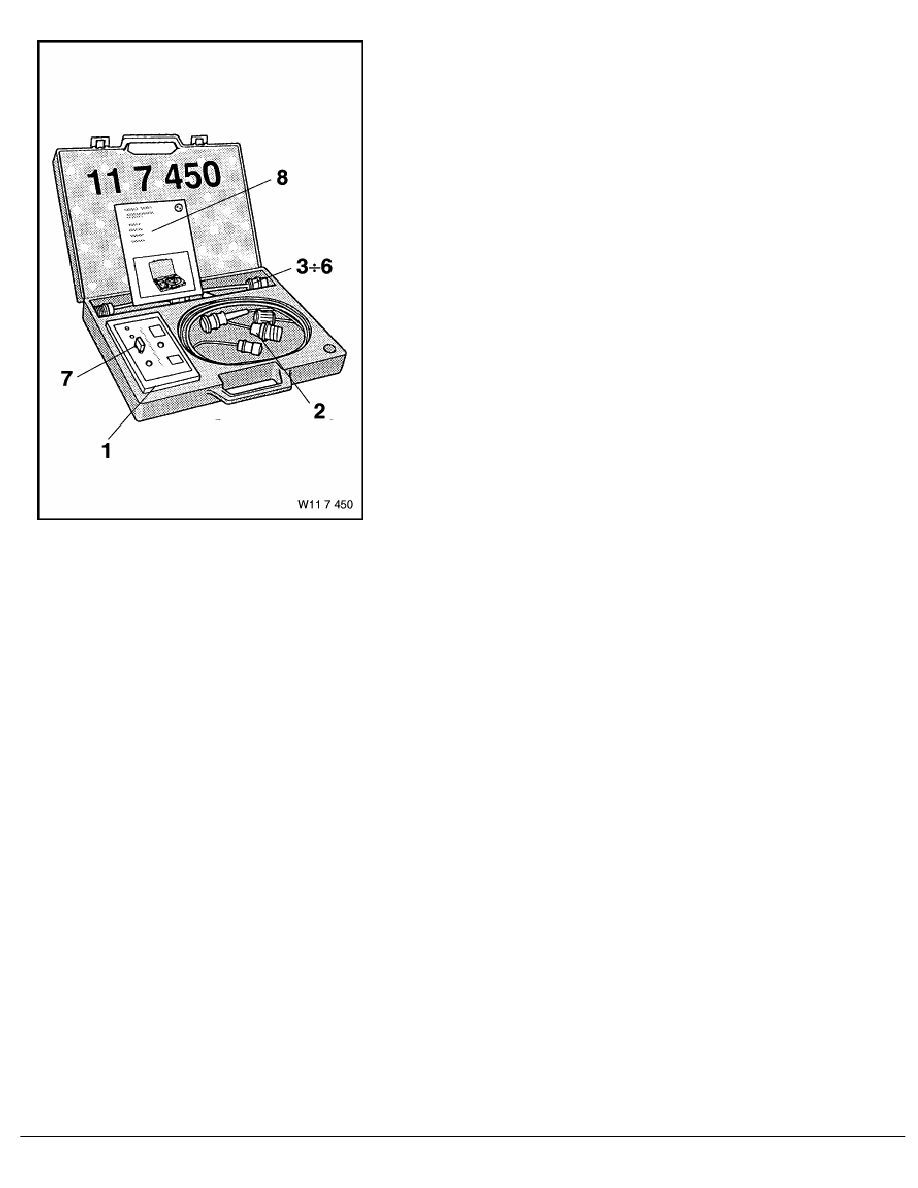

Order number:
11 7 450
Simulator
Consisting of:
1 = 11 7 451
Simulator (operator unit)
2 = 11 7 452
4-pin connecting cable, coding A
Note: Connection to wiring harness and
oxygen sensor - engine: M40, M42, M43,
M50, M70
3 = 11 7 453
4-pin plug connection, coding B
Note: Connection to oxygen sensor - engine:
S50/B30
4 = 11 7 454
4-pin plug connection, coding B
Note: Connection to wiring harness - engine:
S50/B30
5 = 11 7 455
1- and 3/4-pin plug connection
Note: Connection to oxygen sensor with
Bosch or Cannon plug connection - engine:
M10, M20, M30, S14
6 = 11 7 456
1- and 3/4-pin plug connection
Note: Connection to wiring harness with
Bosch or Cannon plug connection - engine:
M10, M20, M30, S14
8 = 11 7 458
Plug-in jumper
8 = 11 7 459
Operating instructions
SWZ Simulator
