3 Series E36 316i (M43) COMP
11 51 000
Removing and installing / replacing water
pump (M43 / M43TU)
Removing alternator drive belt,
refer to 11 28 010.
Drain coolant.
Installation:
Vent cooling system and check for leaks,
refer to 17 00 039.

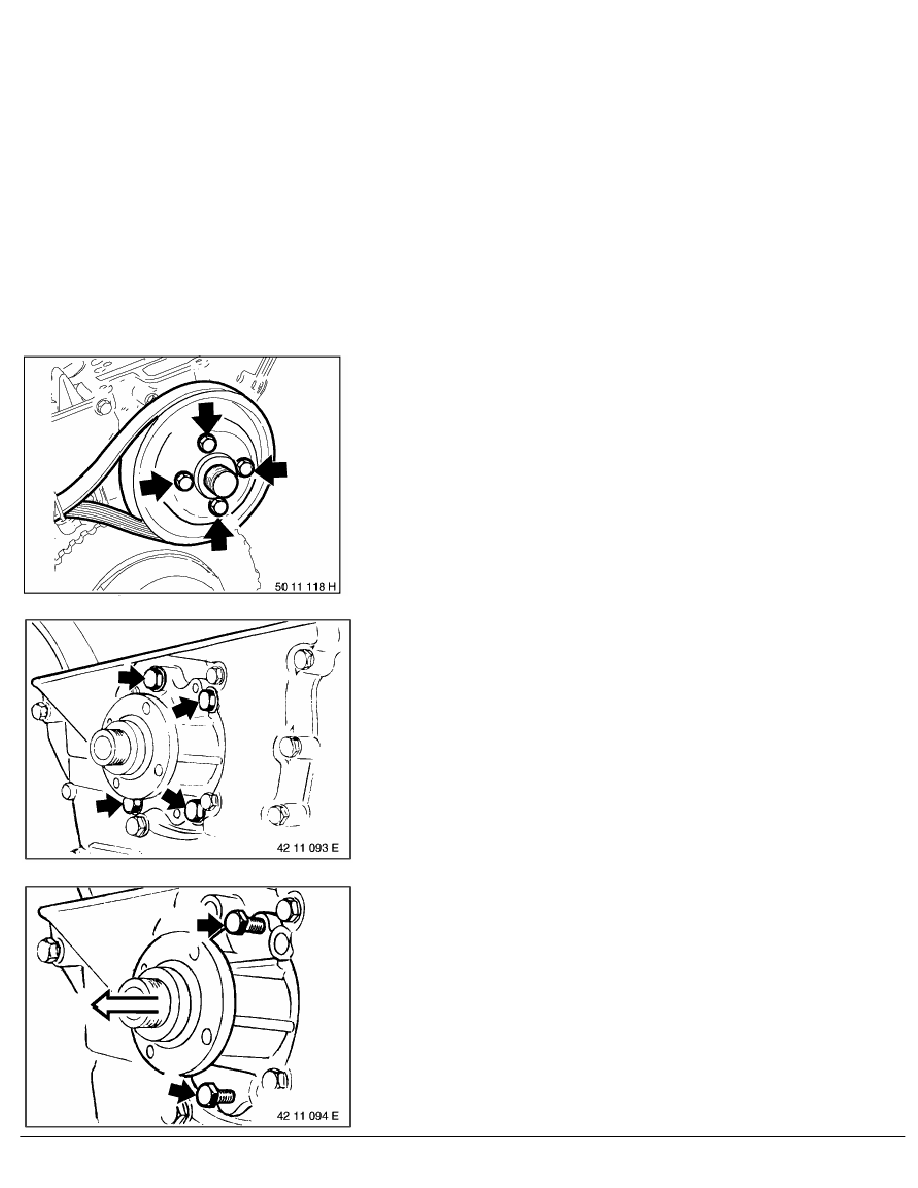

Release belt pulley.
Release water pump.
Insert two M6 screws in water-pump thread and press out water
pump evenly from gear case.
RA Removing and installing / replacing water pump (M43 / M43TU)
