3 RA Removing And Installing _ Replacing Fuel Filler Pipe ( Compact )|Page 691 > < 3 RA Removing And Installing _ Replacing Fuel Filler Pipe ( Compact )

3 Series E36 316i (M43) COMP

Page 2
background image

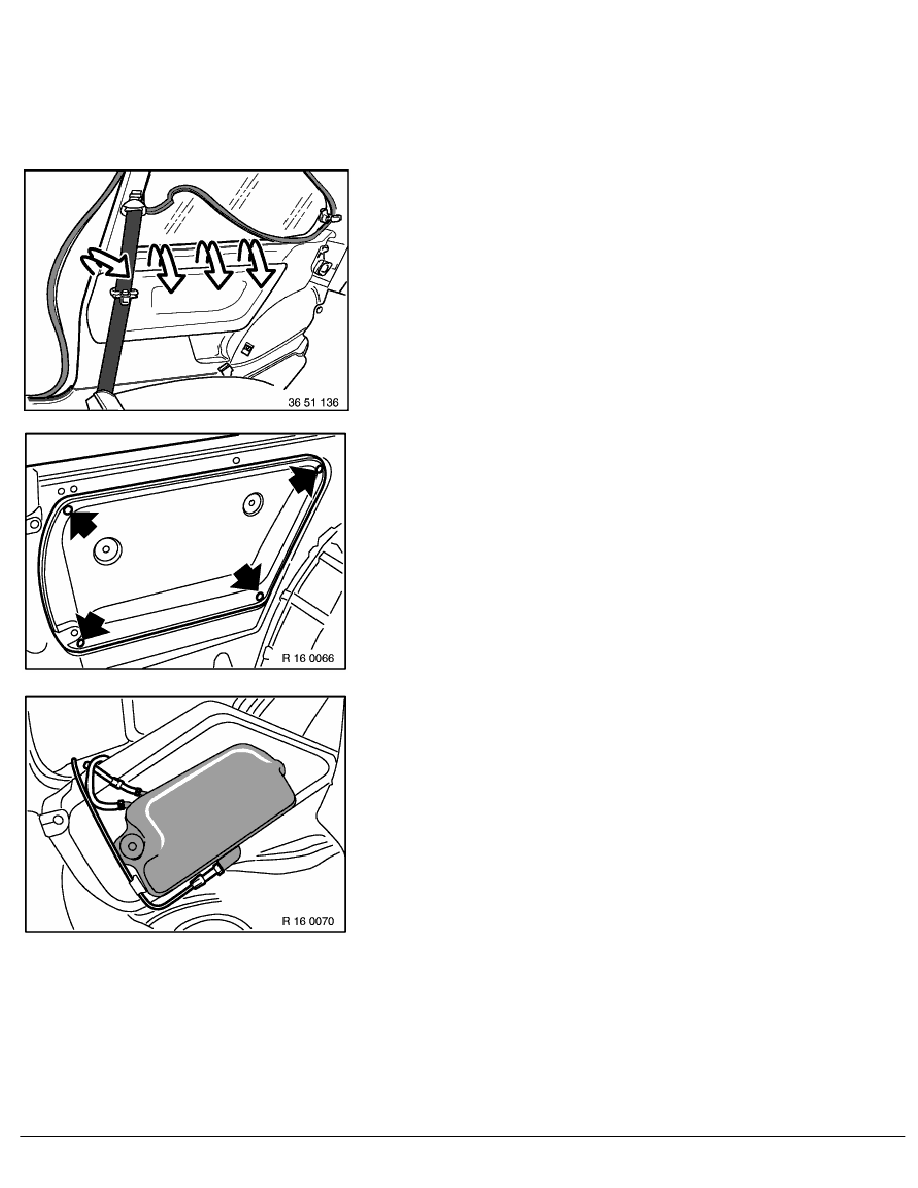

Remove filler hose from fuel tank.

Remove nuts.

Unclip sleeve from side wall.

Pull fuel intake pipe upwards and remove hoses.

Installation:

Ensure sealing sleeve is correctly seated on filler hose.

RA  Removing and installing / replacing fuel filler pipe ( compact )

BMW AG - TIS

18.01.2013  20:16

Issue status (12/2007) Valid only until next DVD is issued

Copyright

Page  - 2 -
