3 Series E36 316i (M43) SAL

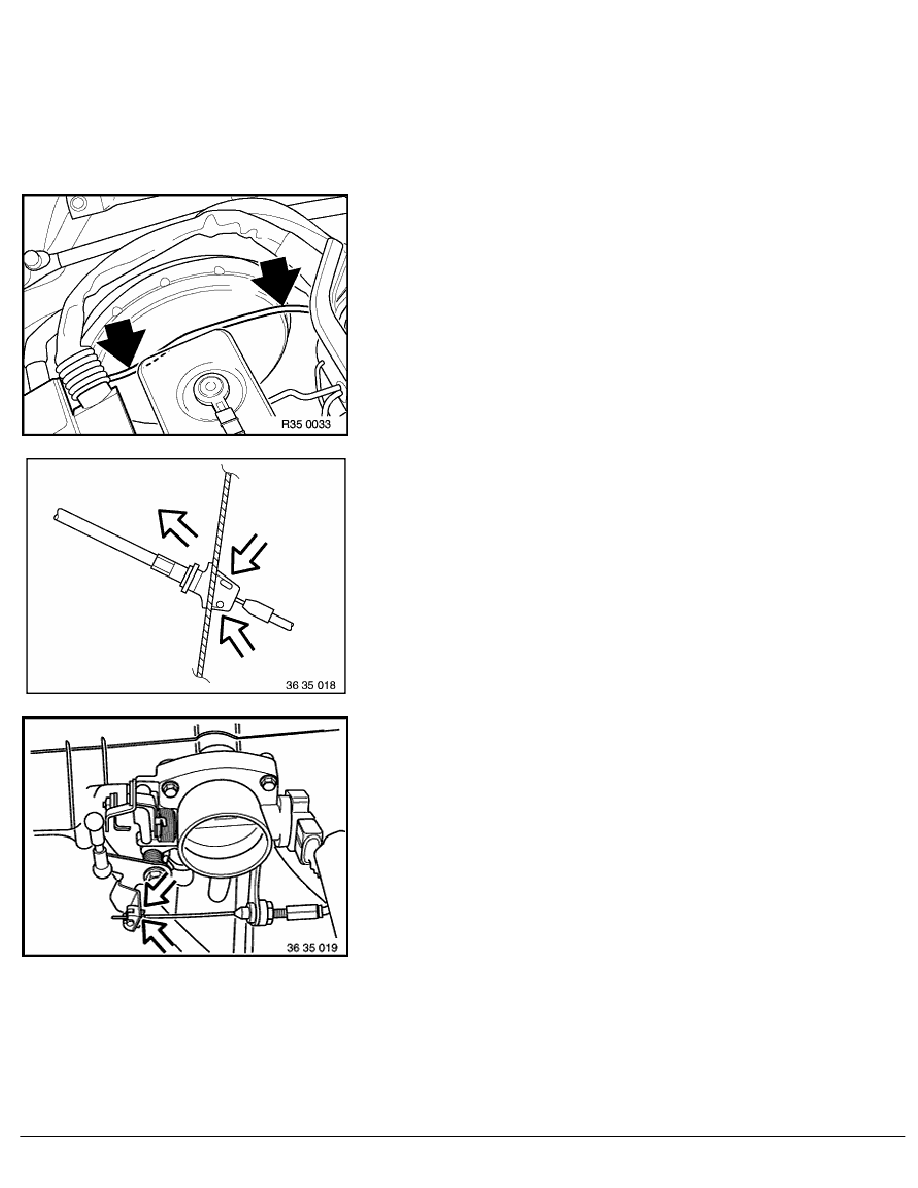

Remove protective cap using a screwdriver.
Pull out Bowden cable towards rear of vehicle.
Installation:
Guide in Bowden cable as far as stop.
Engine M44:
Remove cap (1).
Press together both locking hooks of nipple mount and press
nipple mount out of operating lever.
The subsequent work step is identical to that for the M52 engine,
see above.
RA Replacing Bowden cable for throttle valve actuation
