3 Series E36 316i (M43) SAL
Installation:

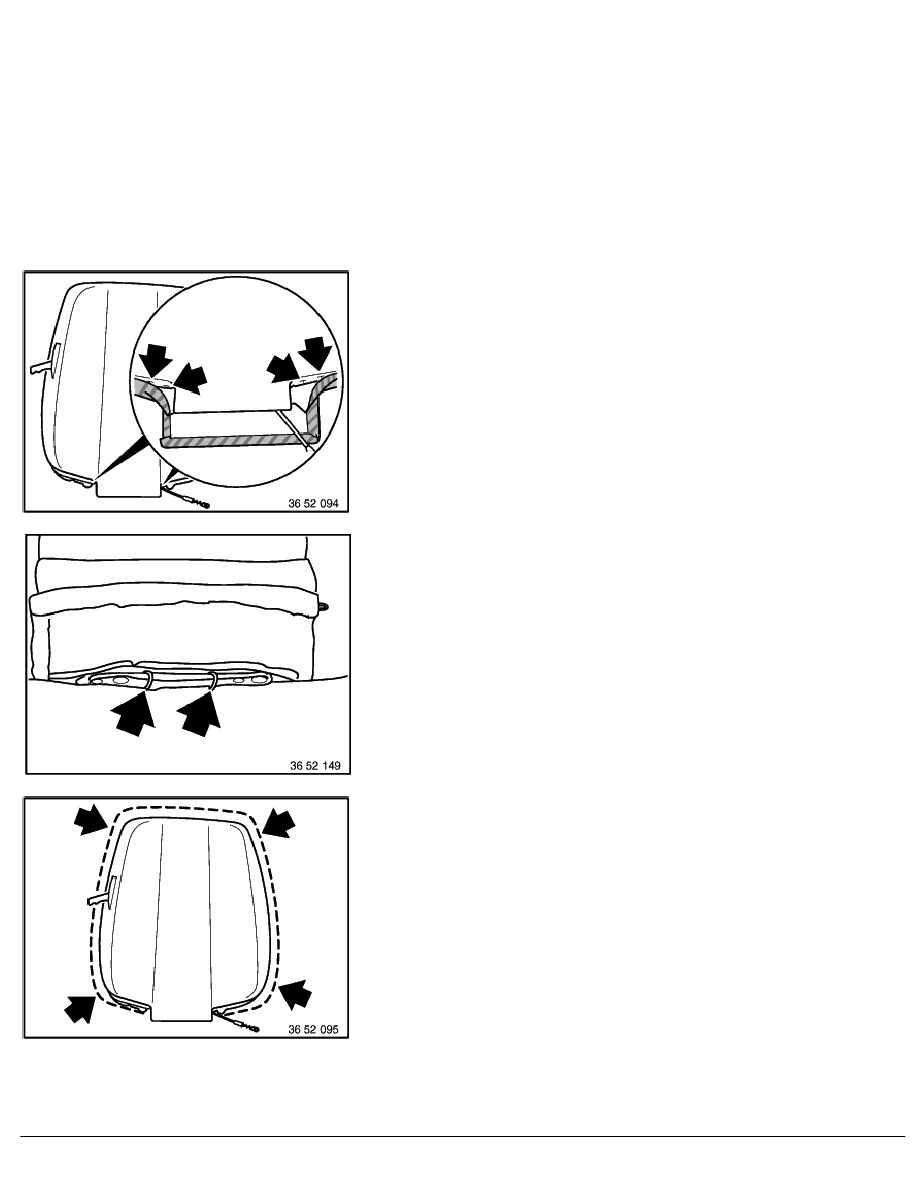

To prevent folds forming in the backrest cover, make sure the
profile strip (1) is completely seated in the plug-in groove.
Spring clips must not be damaged; replace them if necessary.
Fold backrest cover (1) together and separate clips (1) (arrowed).
Remove backrest cover.
Installation:
Pull securing rods from old cover.
Make cuts in new cover and slide in securing rods.
Installation:
Lock new retainers by bending with special tool 52 0 050.
(1) Padding
(2) Retainer
(3) Securing rod in padding
(4) Securing rod in cover
(5) Cover
RA Replacing backrest cover for left or right front seat (power for Coupé)
