3 Series E36 316i (M43) SAL
compact

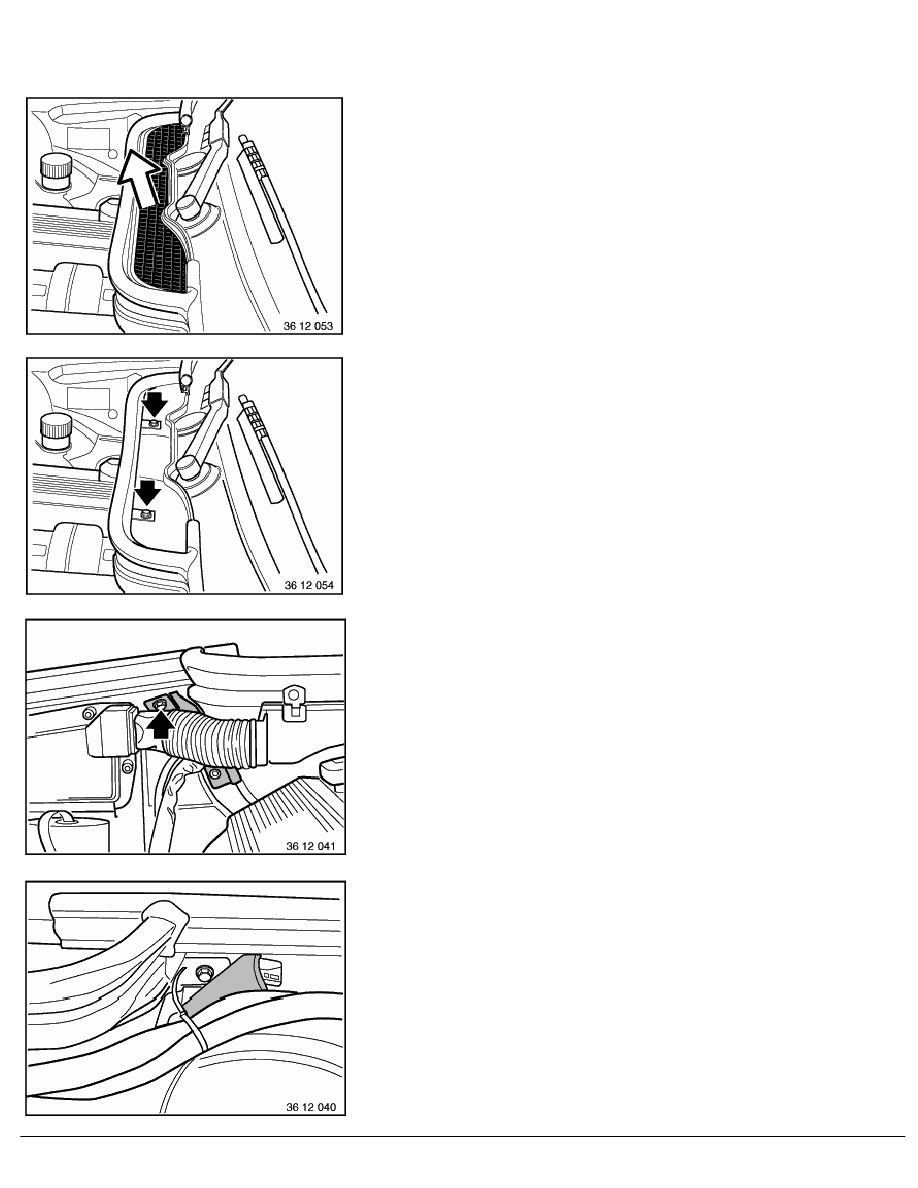

Unfasten screws, twist cover and lift off.
Remove connector, unfasten screw and pull fan motor forwards to
remove.
RA Removing and installing or replacing fan for heating unit (M40, M42, M43)
