3 Series E36 316i (M43) TOUR
13 62 531
Replacing temperature sensor for coolant
(M43)
Switch off ignition.
up to 9/95:
Note instructions for disconnecting and connecting battery,
refer to General Data HG-12 00
Disconnect negative battery terminal
Remove upper section of manifold,
refer to 11 61 040
up to 9/95:
Unfasten leads from starter.
refer to 12 41 020
up to 9/95:
Unfasten alternator leads.
refer to 12 31 020
up to 9/95:
Unfasten screw connection on cable duct of lower section of
manifold, unfasten screw connections on engine and place cable
duct to one side.

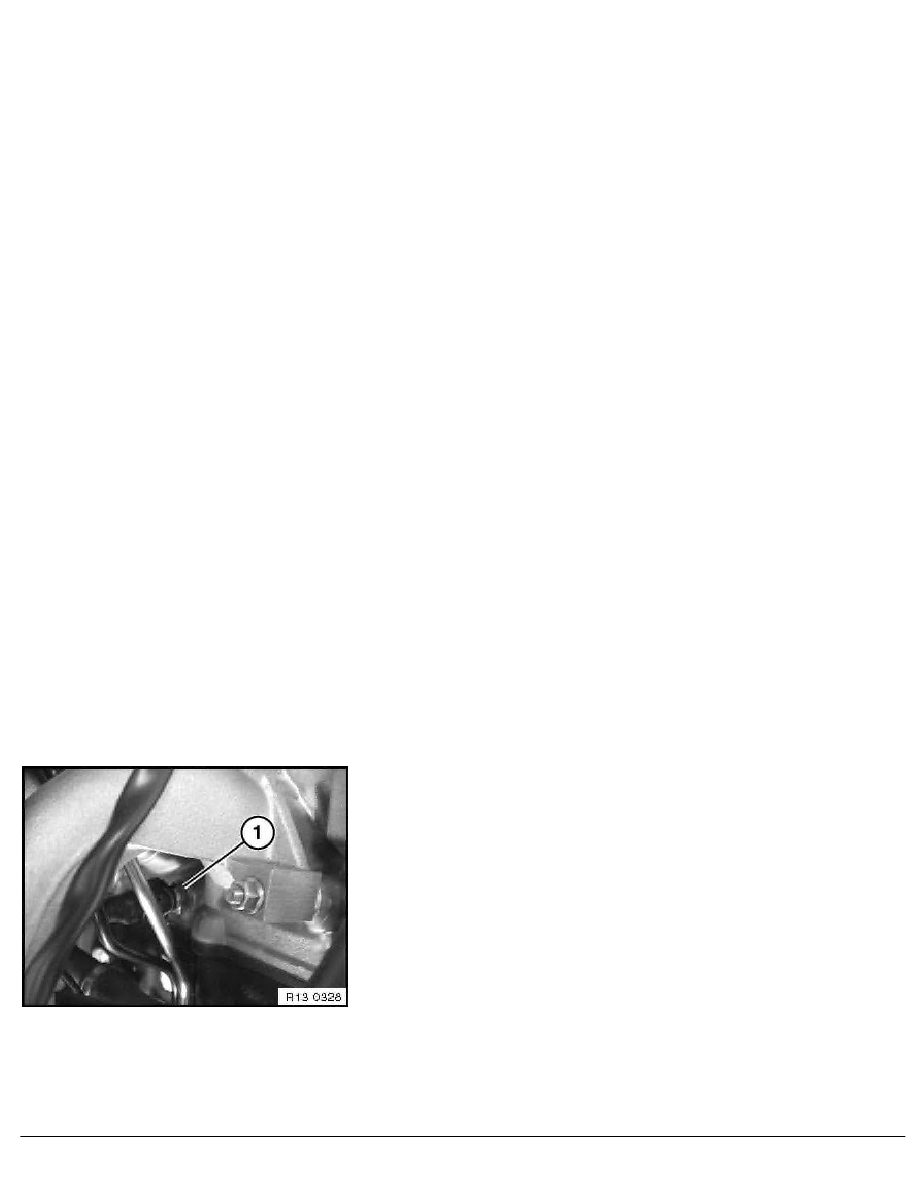

Installation location (1):
Below the intake manifold beside the 3rd cylinder.
RA Replacing temperature sensor for coolant (M43)
