3 Series E36 316i (M43) TOUR
24 00 007
Adjusting shift lever

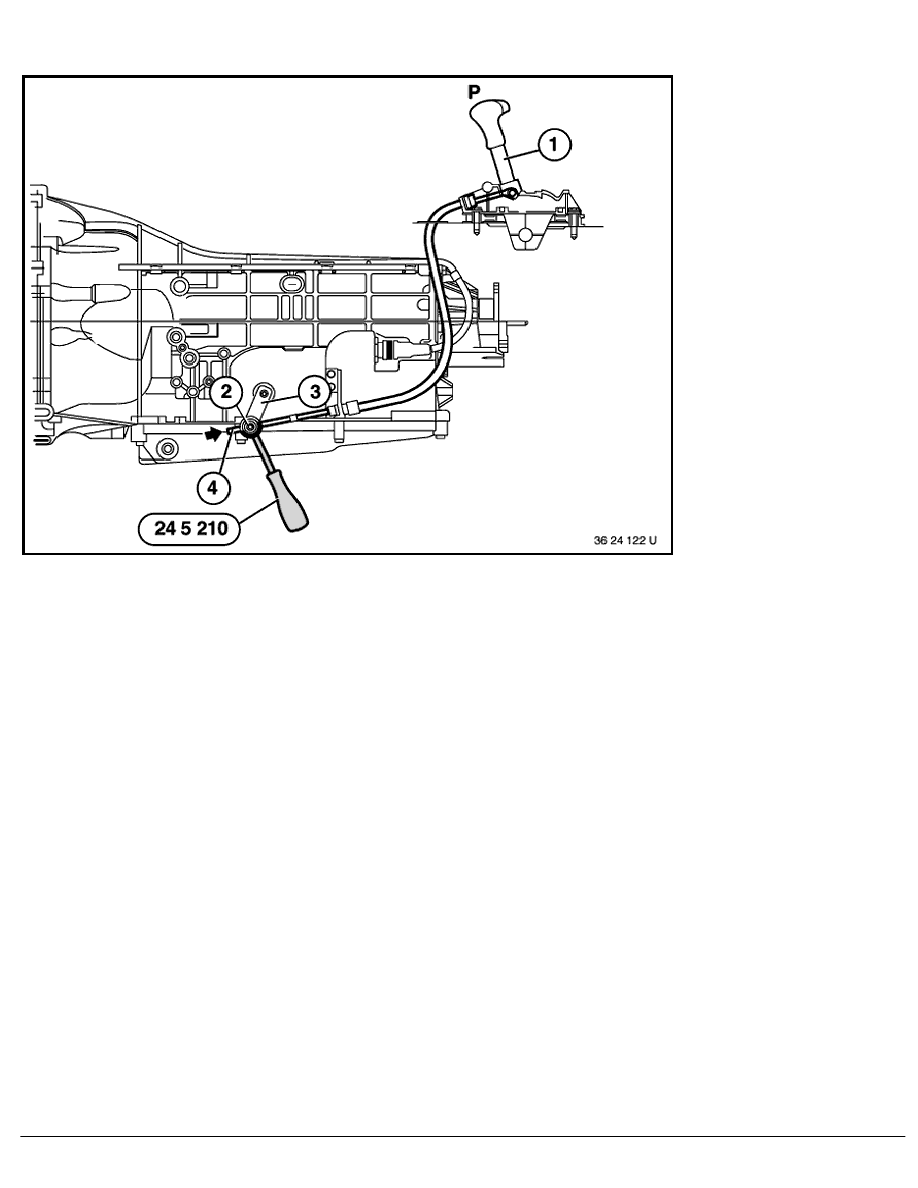

Move selector lever (1) to "P".
Loosen nut (2).
Caution!
Always brace bolt with special tool 24 5 210 to avoid deformation of the cable.
Note:
special tool can only be fitted in position "P".
Press lever (3) forward (park position).
Press cable rod (4) in opposite direction to travel and then release again.
Clamp cable rod (4) by tightening nut (2) (brace with special tool 24 5 210.
Tightening torque: 10 ... 12 Nm.
RA Adjusting shift lever
BMW AG - TIS
20.01.2013 12:49
Issue status (12/2007) Valid only until next DVD is issued
