3 Series E36 316i (M43) TOUR
M model:

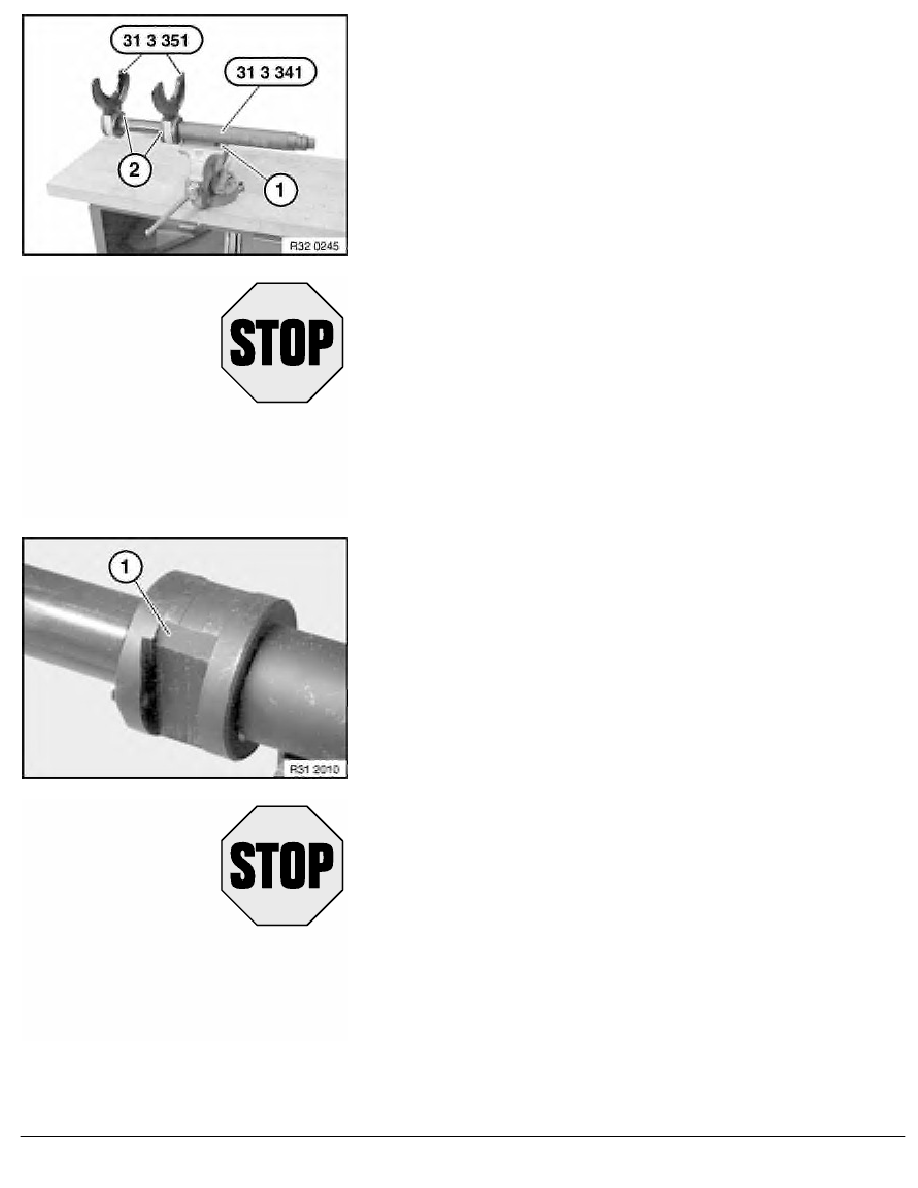

Clamp special tool 31 3 141 at guide (1) in vice.
Important!
Special tools 31 3 351 must each be secured with a locking
pin (2).
Warning!
Do not use special tools which are damaged.
Do not make any modifications whatsoever to special tools.
Use suitable spring retainers only.
The special tools are solely intended for tensioning and
relieving the tension on springs.
Never tighten or untighten special tool 31 3 341 with an
impact screwdriver.
Spring retainers must each be pushed in from chamfer (1) of
special tool 31 3 341.
Warning!
Locking pins must be felt and heard snapping into place.
Check seating of spring retainers 31 3 351 again.
RA Replacing front spring strut shock absorber on right or left
