3 Series E36 316i (M43) TOUR

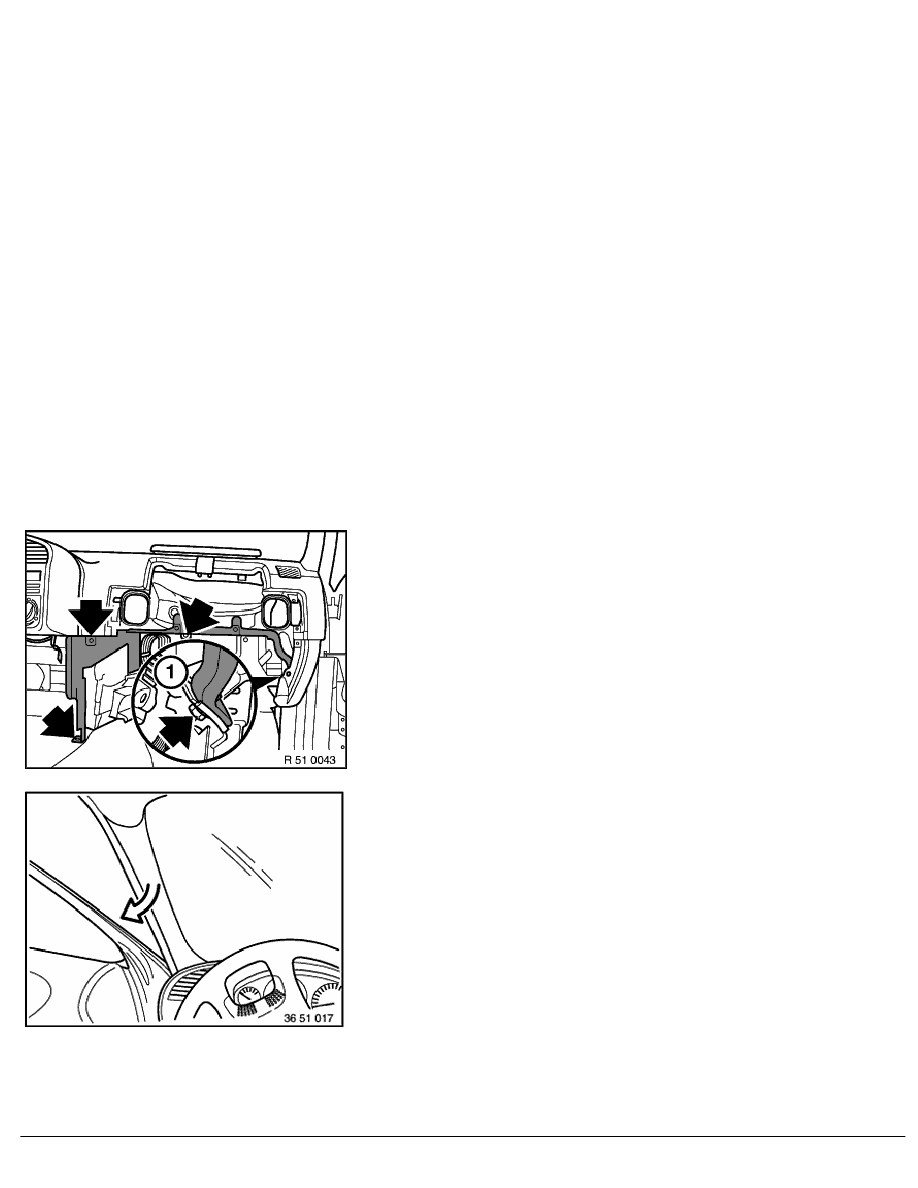

Remove screws and right dashboard trim panel.
Remove bottom trim panel screws at left side.
Pull bottom trim panel to the side out of the clips.
Removing shift lever cover,
refer to 25 11 000
or
25 16 050
Remove rear ashtray.
Unscrew screws and remove parking brake lever.
RA Removing and installing instrument panel trim
