3 Series E36 316i (M43) TOUR
64 11 320
Replace front plate (for actuation of heating
system)
Sedan, coupé, convertible

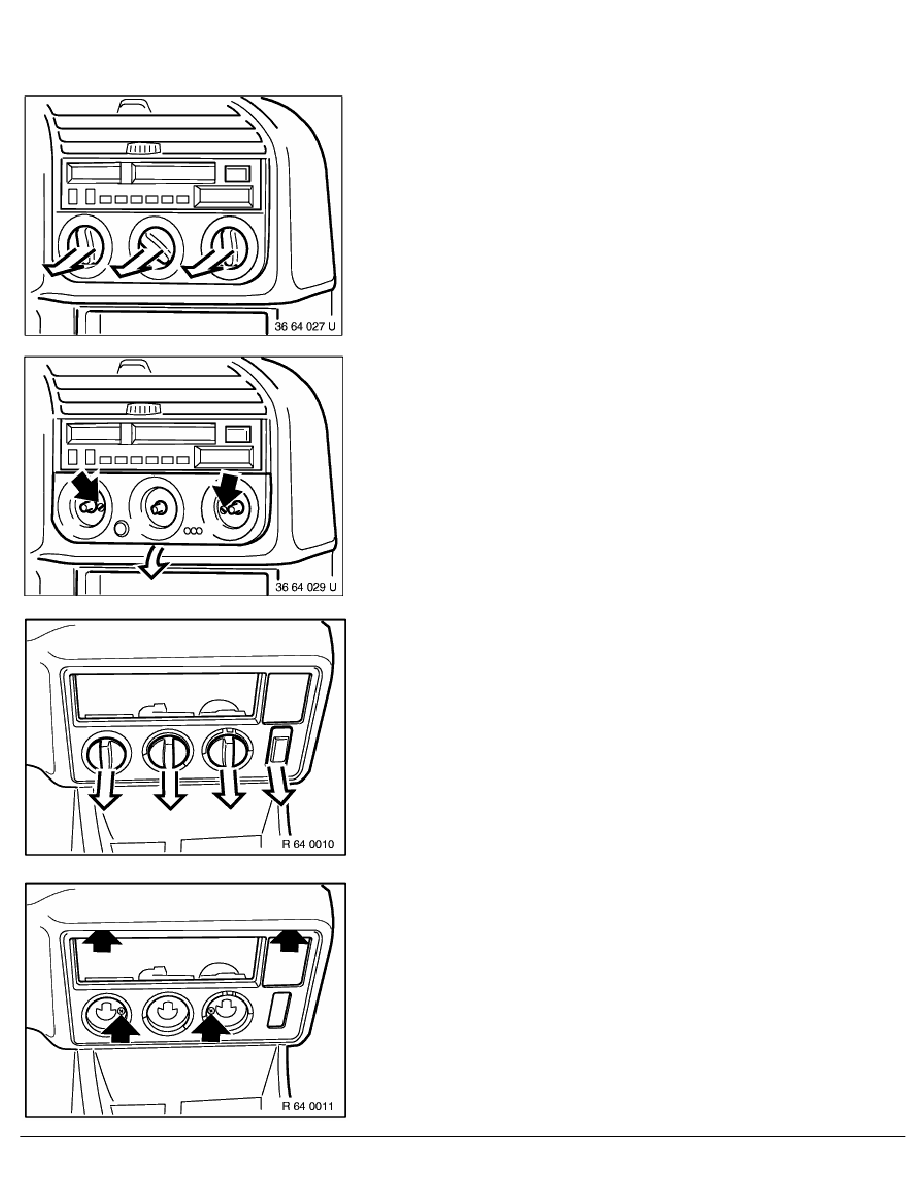

Pull off control knobs.
Remove screws and pry off front panel.
Compact
Remove clock,
refer to 62 13 050.
Press out switch for heated rear window. Pull off control knobs.
Unscrew bolts.
RA Replace front plate (for actuation of heating system)
BMW AG - TIS
20.01.2013 16:53
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 1 -
