3 Series E36 316i (M43) TOUR

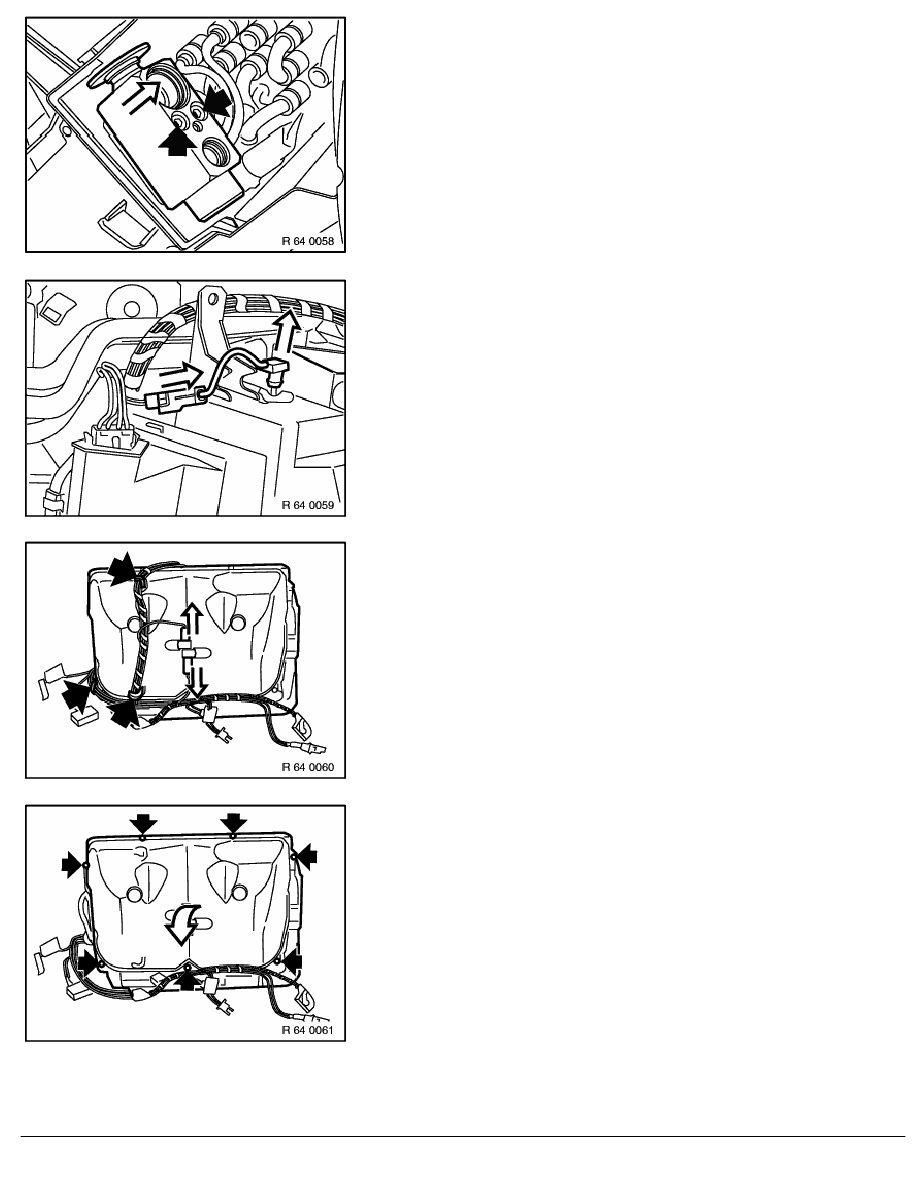

Loosen screws and pull out expansion valve.
Installation note:
Replace O-rings
Unclip plug-in connection from the bracket and pull out evaporator
sensor.
Unclip wiring harness from brackets on top, below and sides.
Place connector to one side.
Loosen screw and place cover to one side.
RA Remove and install/replace evaporator
