3 Series E36 318i (M42) SAL

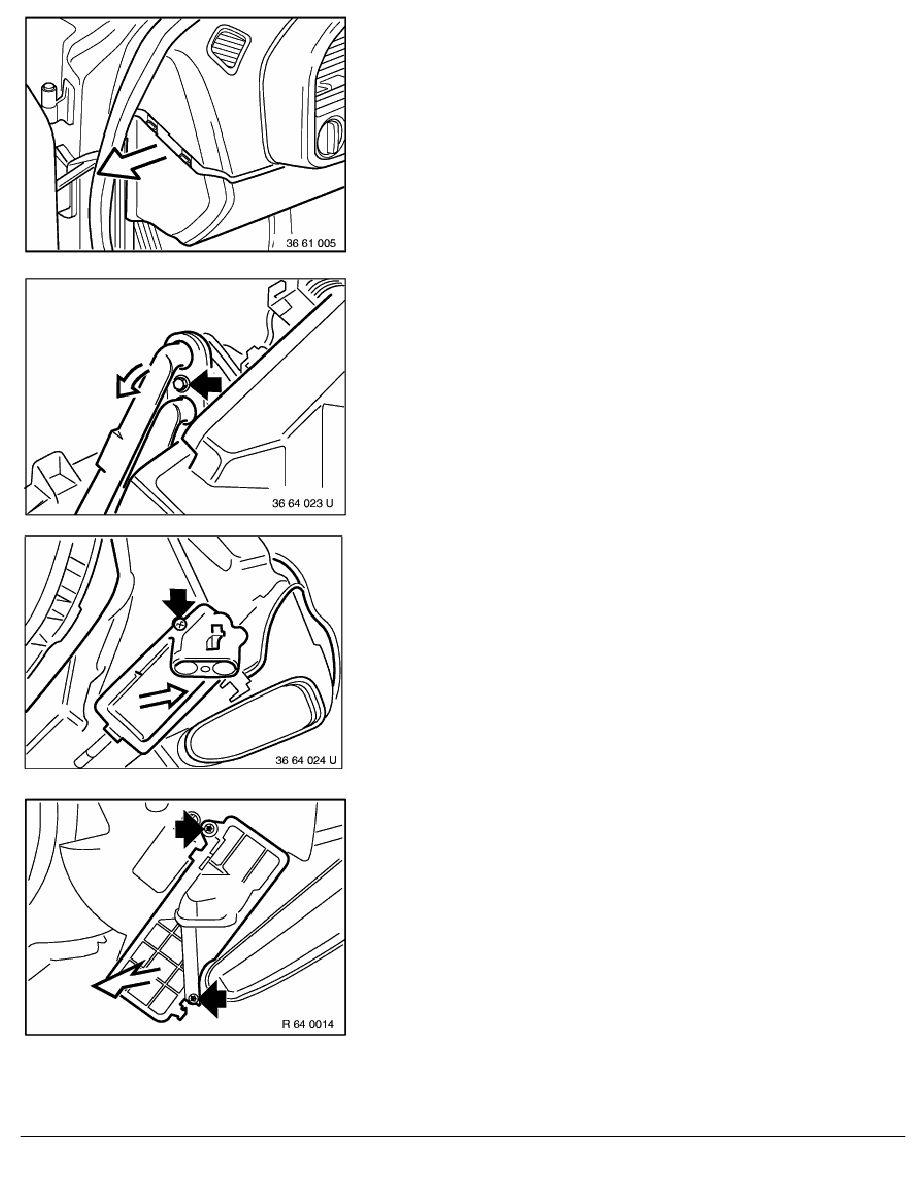

Pry out lower trim panel.
On US vehicles:
Release screws and remove knee protection.
Remove holder for strip connector from steering column.
Remove screw and take off double-pipe.
Installation:
Tightening torque,
refer to Technical Data 64 21 1AZ.
Replace O-rings.
Note:
Shown on removed heater for better demonstration.
Sedan, coupé, convertible
Remove screw and pull out heater core.
Note:
Shown on removed heater for better demonstration.
Installation:
Tightening torque,
refer to Technical Data 64 21 5AZ.
Compact
Remove screw and pull out heater core.
Note:
Shown on removed heater for better demonstration.
Installation:
Tightening torque,
refer to Technical Data 64 215AZ.
RA Replacing heater core (heating)
