3 Series E36 318i (M43) CONVER

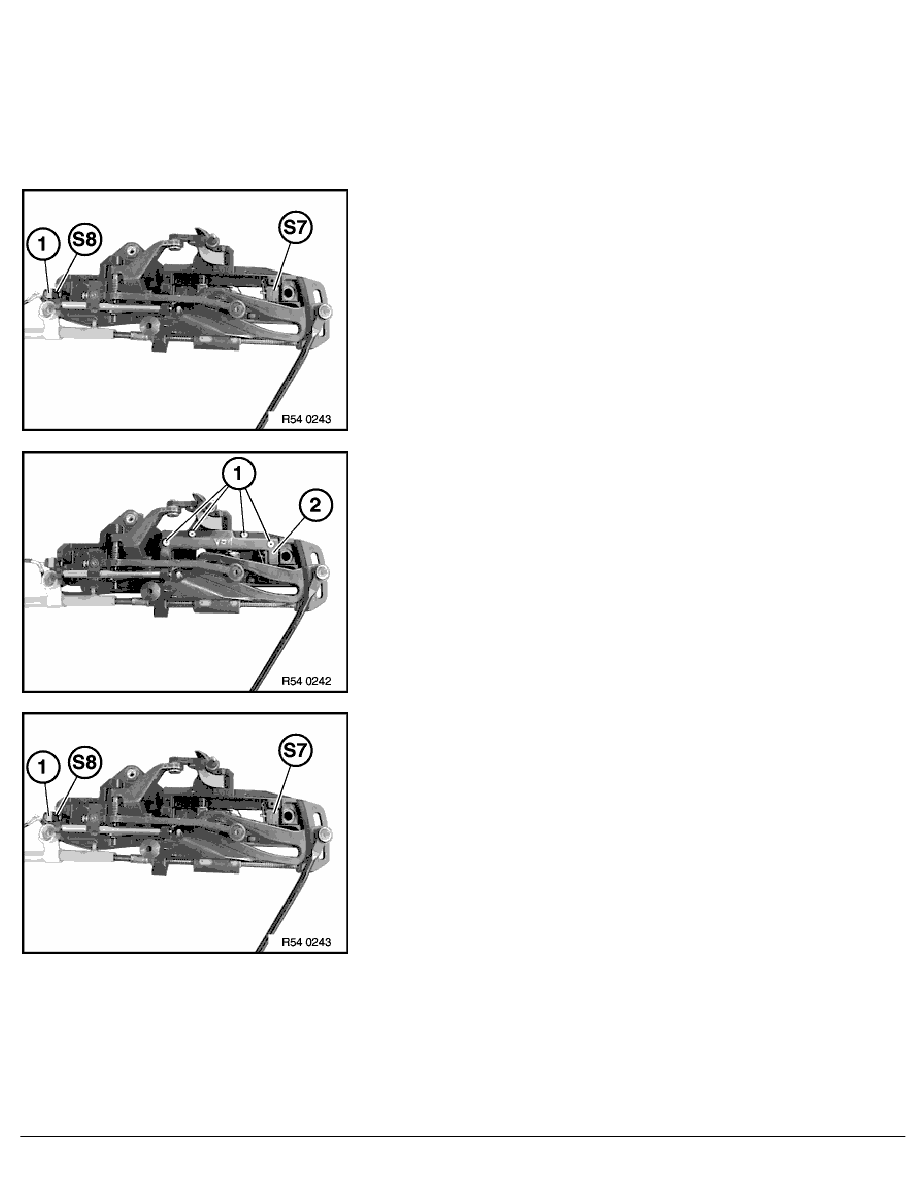

Unfasten cable connector (1). Remove micro-switches (S7) and
(S8).
Installation:
Note routing of cable (2).
Guide pins (1) on micro-switches (S7) and (S8) must not be
damaged.
RA Removing and installing/replacing micro-switch - convertible top locked down ove
