3 Series E36 318i (M43) CONVER
Routing of wires with CD player

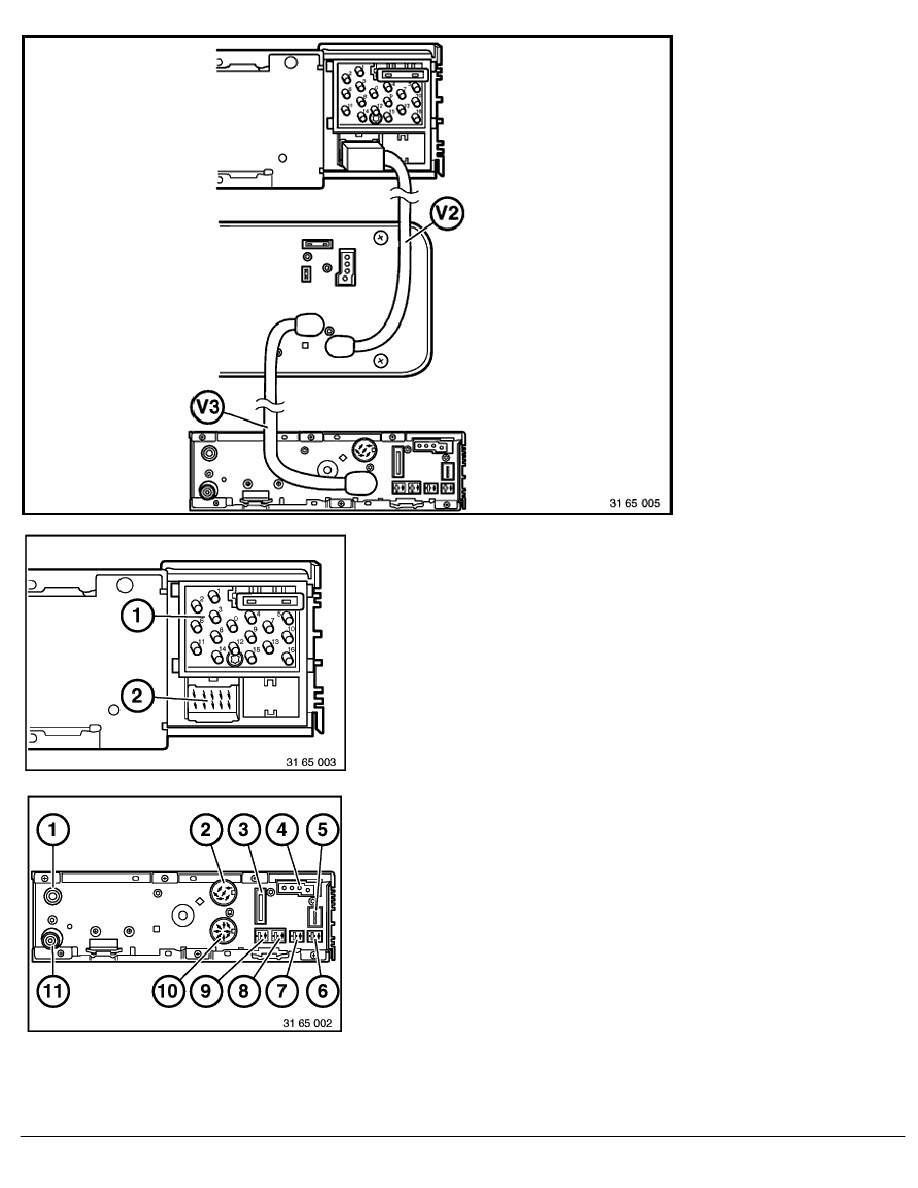

Connections for Control End:
1.
Connector, 17-pin (power supply)
2.
Connector, 10-pin (to receiver with connecting cable V1 or to
CD player with connecting cable V2)
3.
Fuse = 3 amperes
Connections for Receiver End:
1.
Antennas - various
2.
Remote control
3.
Fuse = 5 amperes
4.
Connector 4-pin (power supply)
5.
Connector, 1-pin (electric aerial)
6.
Speaker front left
7.
Speaker front right
8.
Speaker rear left
9.
Speaker rear right
10. Connector, 8-pin, (from controls with connecting cable V1 or
from CD player with connecting cable V3)
RA Checking connecting wires
