3 Series E36 318i (M43) TOUR
Installation:
Model with twin-mass flywheel.

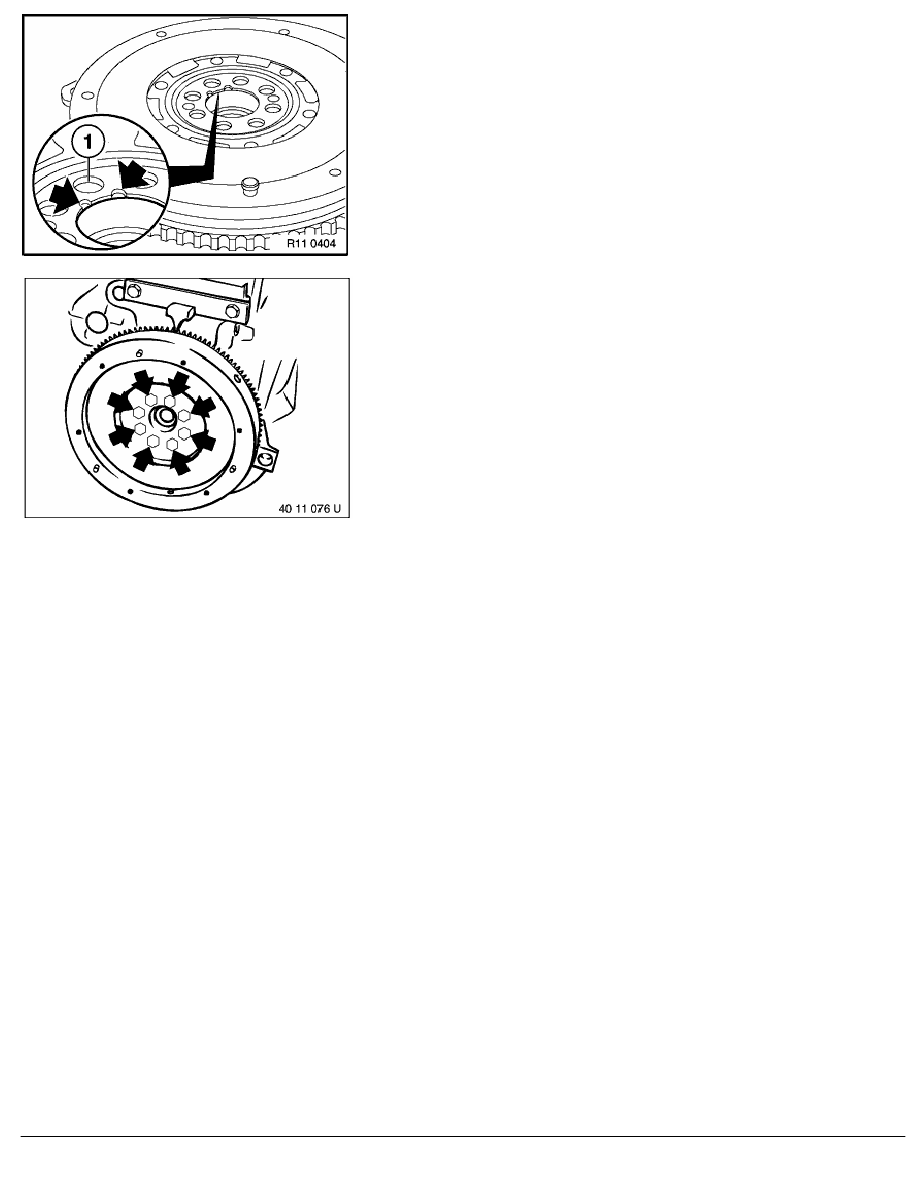

The position of the dowel sleeve (1) in the dual-mass
flywheel is marked with two notches beside the respective
screw bore.
Installation:
Clean thread and install new micro-encapsulated screws.
Tightening Torque,
refer to Technical Data 11 22 1AZ.
RA Removing and installing or replacing flywheel (M43 / M43TU)
BMW AG - TIS
26.01.2013 04:00
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 2 -
