3 Series E36 318i (M43) TOUR
Remove fan wheel and fan coupling from water pump,
refer to 11 52 020

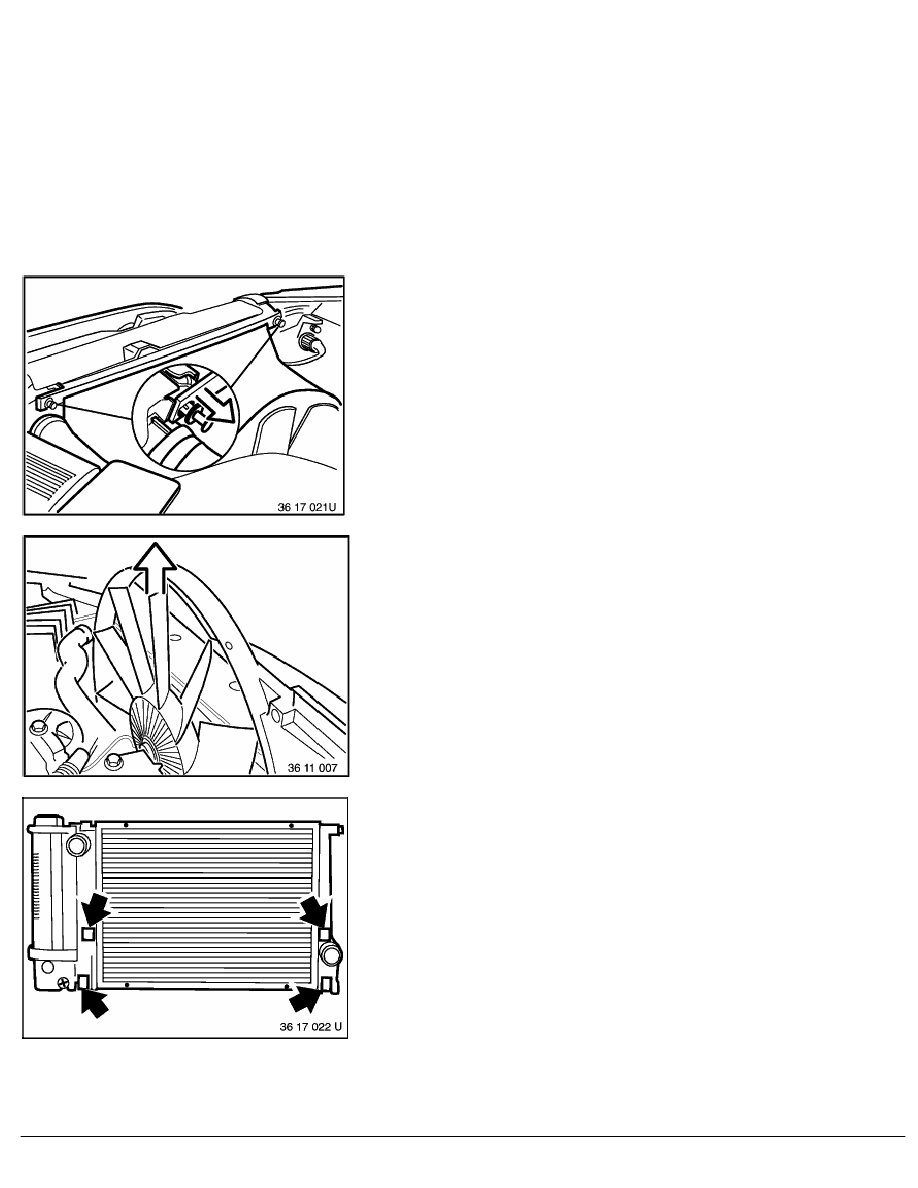

Lift expanding rivets from left and right sides of fan cowl.
Press center of fan cowl gently backwards and disconnect guide
tab.
Extract fan cowl and fan jointly.
Installation:
When installing fan cowl, attach left and right tabs to radiator
brackets.
Connect guide tab in upper center.
RA Replacing fan shroud (M40, M43, M50, M51, M52)
