3 Series E36 318i (M43) TOUR

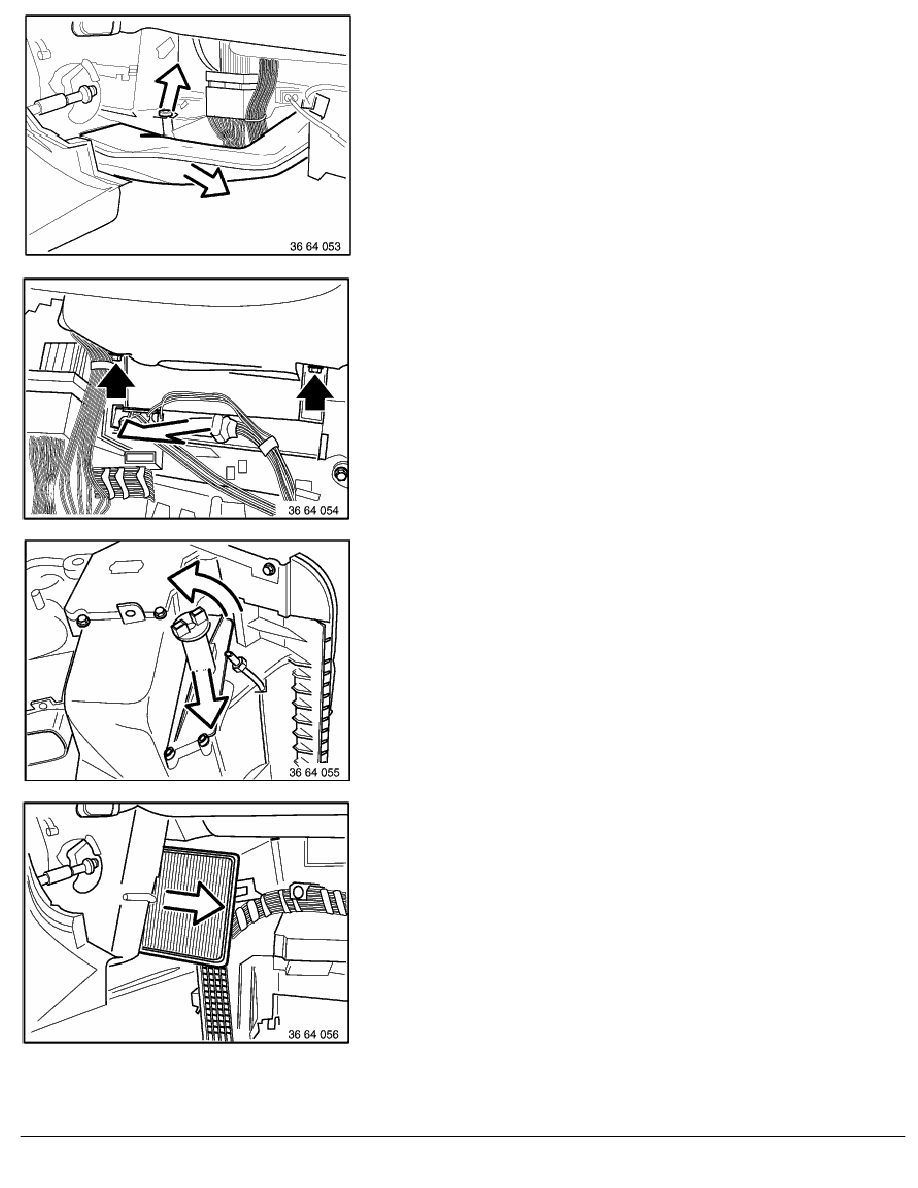

Unclip air duct for the footwell and lift it out.
Remove screws and tilt the control module holder in downwards
direction.
Turn lock about 45
°
and remove cover.
If necessary, remove microfilter.
RA Cleaning evaporator
BMW AG - TIS
26.01.2013 11:42
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 3 -
