3 Series E36 318is (M42) COUPE

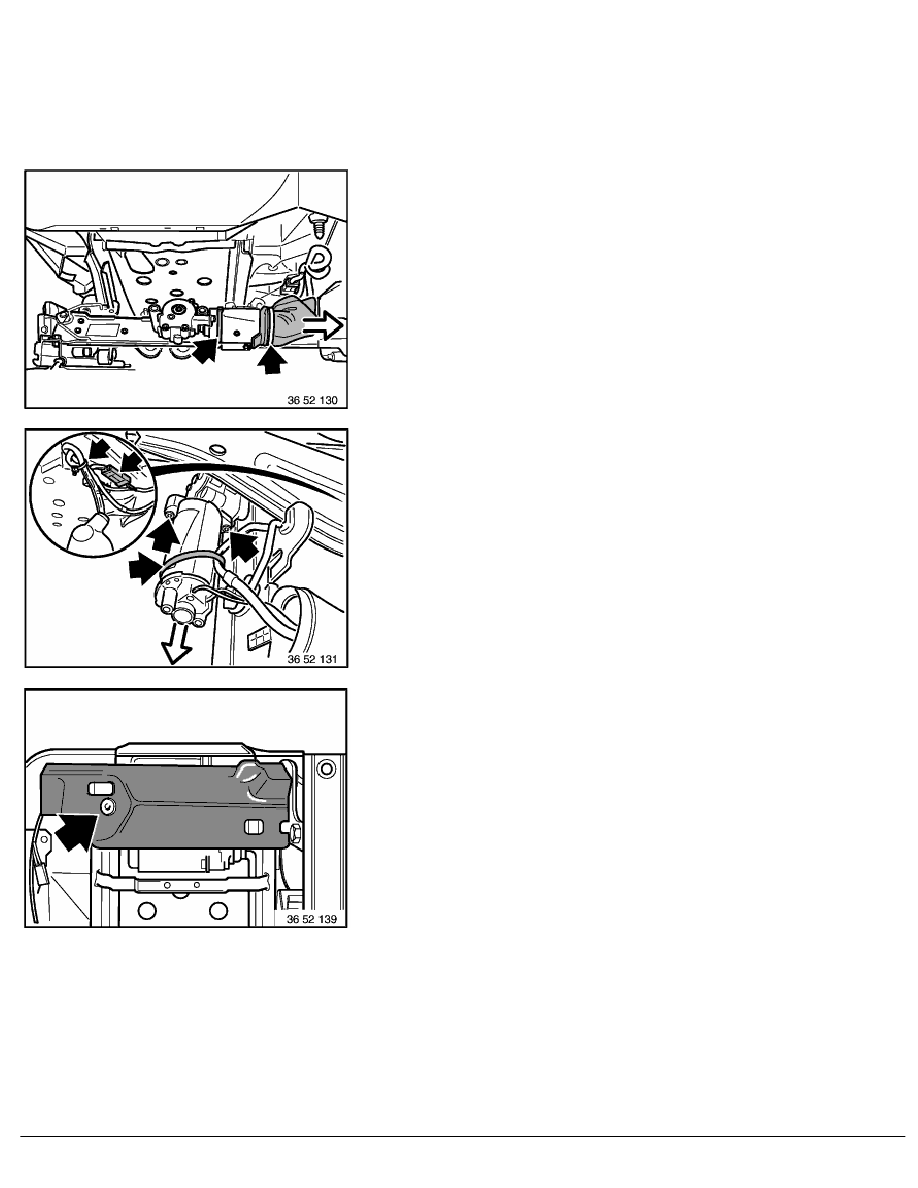

Remove screws (1 and 2) and remove backrest control drive.
Unscrew screws (3 and 4) and remove rear end up/down control
drive.
Loosen cable straps and disconnect plug (4).
Unlock and pull off plug receptacle towards rear.
Installation:
Connect special tools 61 2 071 and 61 2 072 (adapter
leads) on white plug and 12 V power supply source.
Check function.
RA Removing and installing/replacing actuator drive for front or rear seat height
