3 Series E36 318is (M42) COUPE

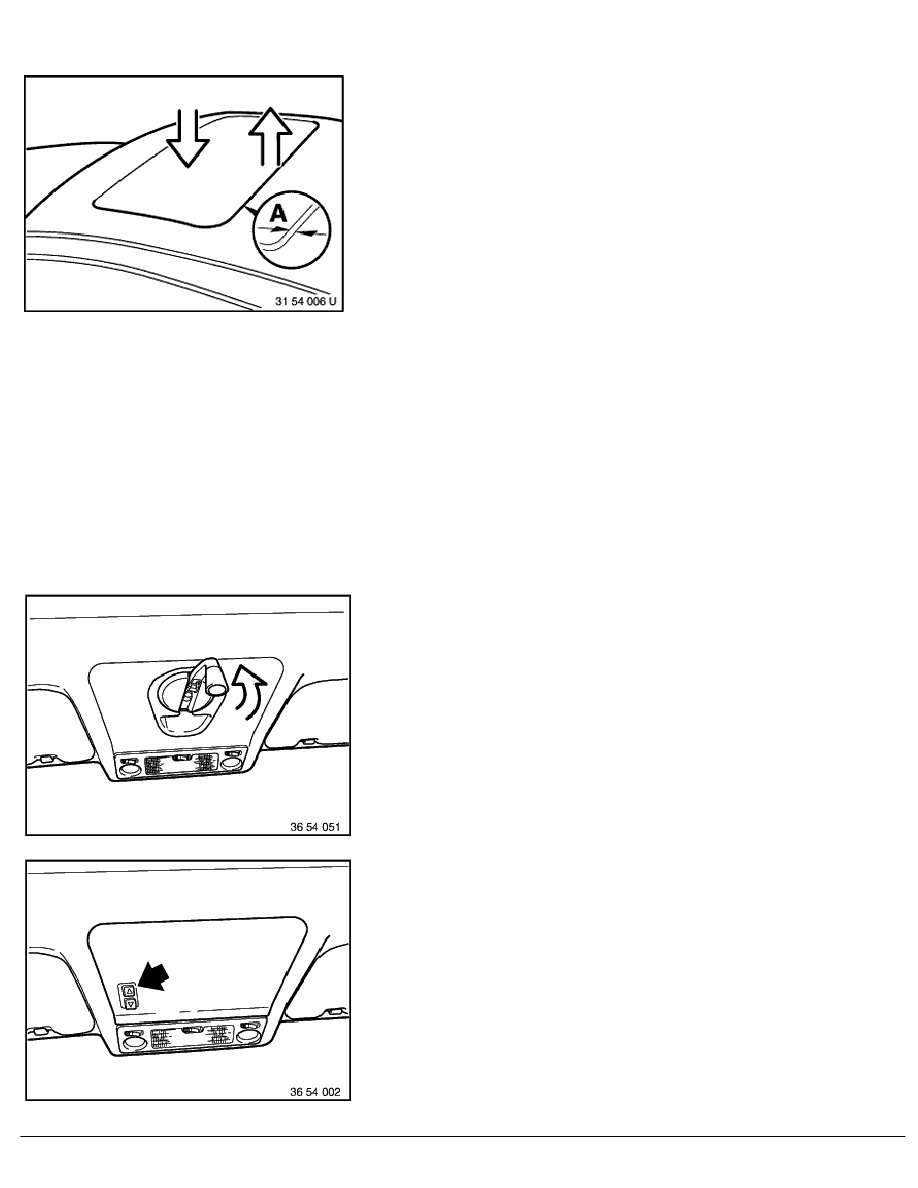

Rear end of sun-roof lid should now be lowered by distance (A).
Distance (A) = 2 to 3 mm
Push floating roof liner back slowly and as far as possible.
Caution!
Quick movement of the floating roof liner could damage the
mechanism (guide / rotary catch) of the sun-roof cassette.
Do not move floating roof liner with force.
Shut sun roof (neutral position).
Caution!
Sun roof must no longer be operated back (mechanism would
be damaged).
Rear Adjustment:
Remove left and right nuts (2) and screws (3) and replace them.
Push left and right adjusting wedges (1) in or out enough until the
ideal position is reached. Before tightening down, press slide/tilt
sunroof forwards and tighten down nuts (2) and screws (3).
Tightening torque, refer to Technical Data
RA Adjusting sun roof
