3 Series E36 318is (M44) CONVER

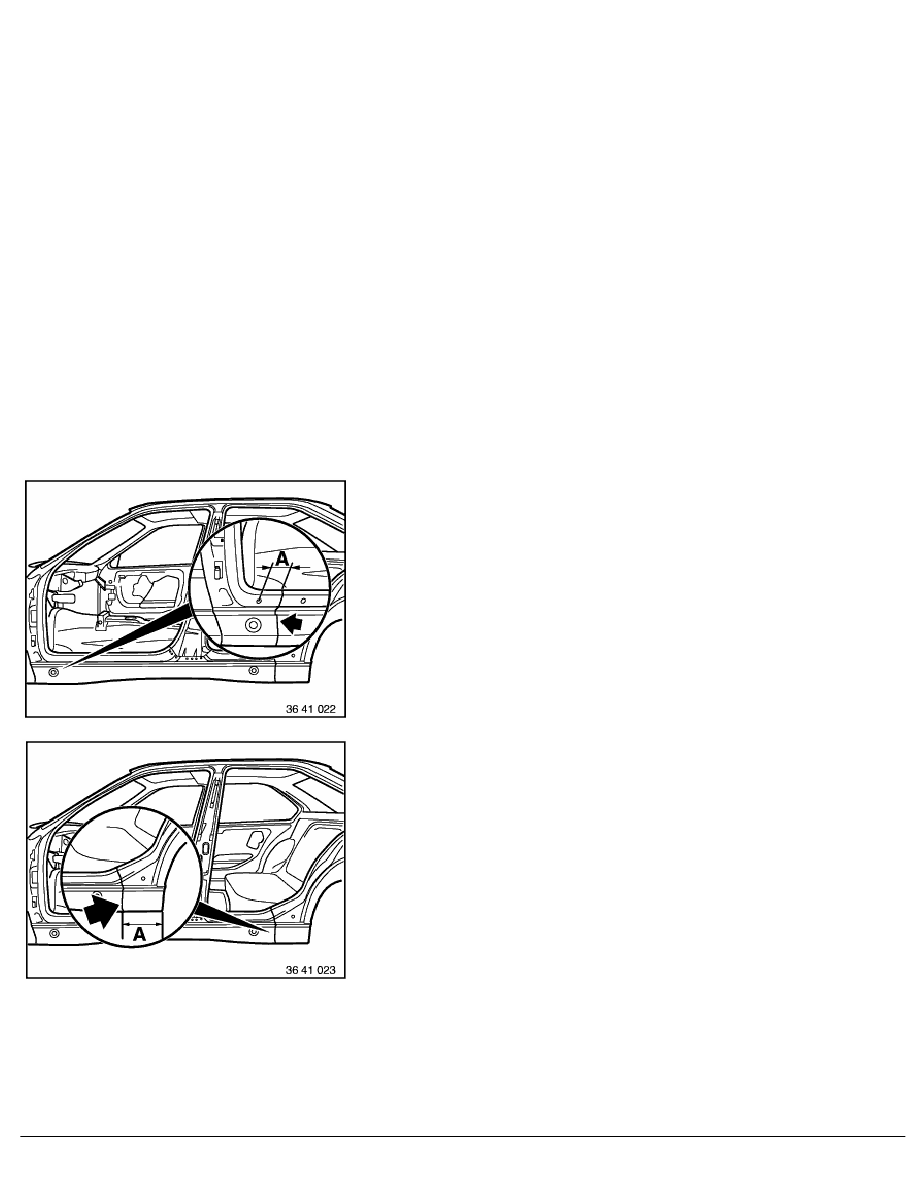

Cut front reinforcement plate (1) to size and fit in.
Width of reinforcement plate = 60 mm.
Drill holes for plug welding in side member cover and deburr (2).
Coat reinforcement plate with zinc dust paint and slide into
remaining side member cover 30 mm deep and weld.
Cut rear reinforcement plate to size and fit in.
Width of reinforcement plate = 60 mm.
Drill holes for plug welding in side member cover and deburr.
Coat reinforcement plates with zinc dust paint and slide into
remaining side member cover 30 mm deep and weld.
RA Replacing left or right side member cover (partial replacement of A-pillar and r
