3 Series E36 318is (M44) CONVER
54 25 ...

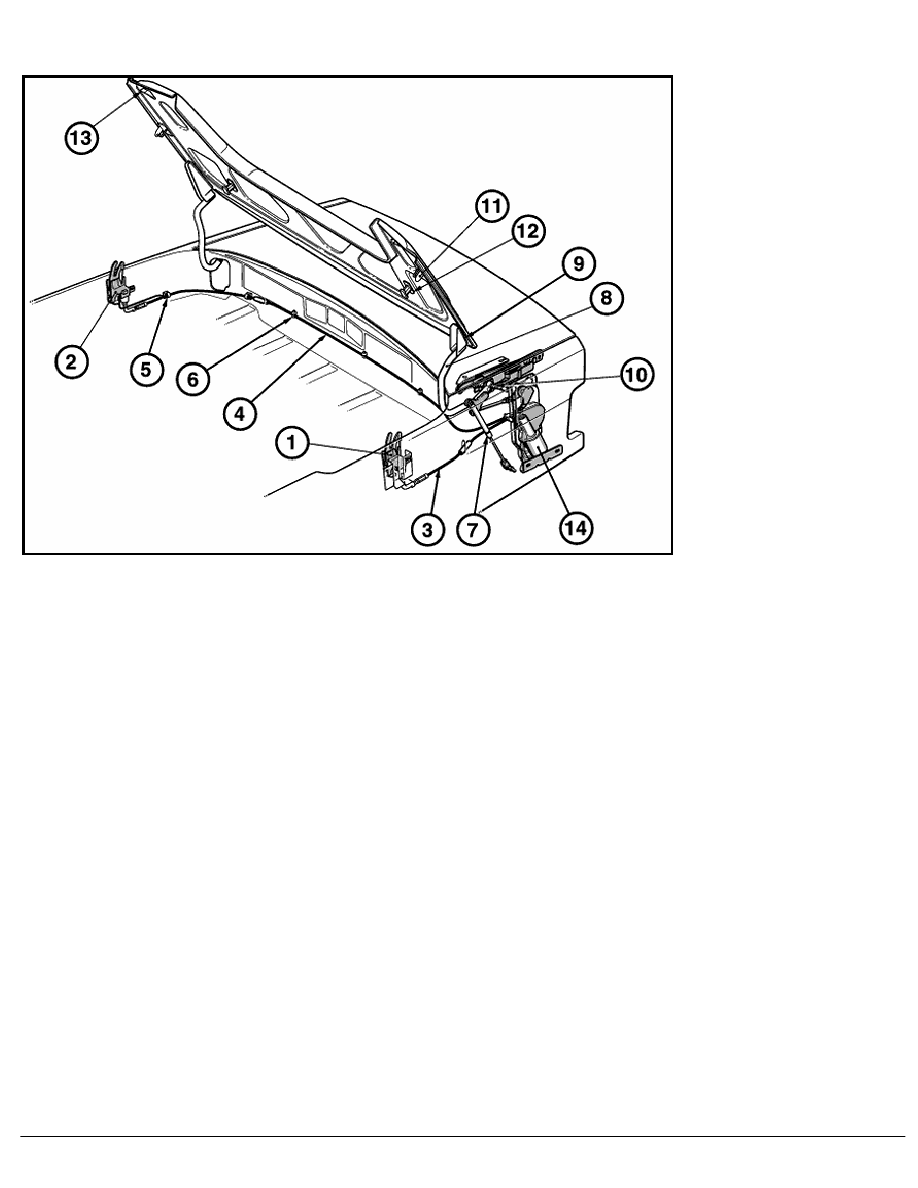

Arrangement of convertible top cover and drives (EM convertible top)
1
Soft top compartment cover lock, left
2
Soft top compartment cover lock, right
3
Bowden cable, left
4
Bowden cable, right
5
Clip
6
Cable clip
7
Gas strut
8
Hinge bracket L/R
9
Support
10
Retainer
11
Closing bracket L/R
12
Detent L/R
13
Emergency detent L/R
14
Complete convertible top lid drive
RA Arrangement of convertible top cover and drives (EM convertible top)
