3 Series E36 318is (M44) COUPE
52 10 920
Removing and installing/replacing actuator
drive for backrest adjustment on front seat
Remove front seat,
refer to 52 10 000

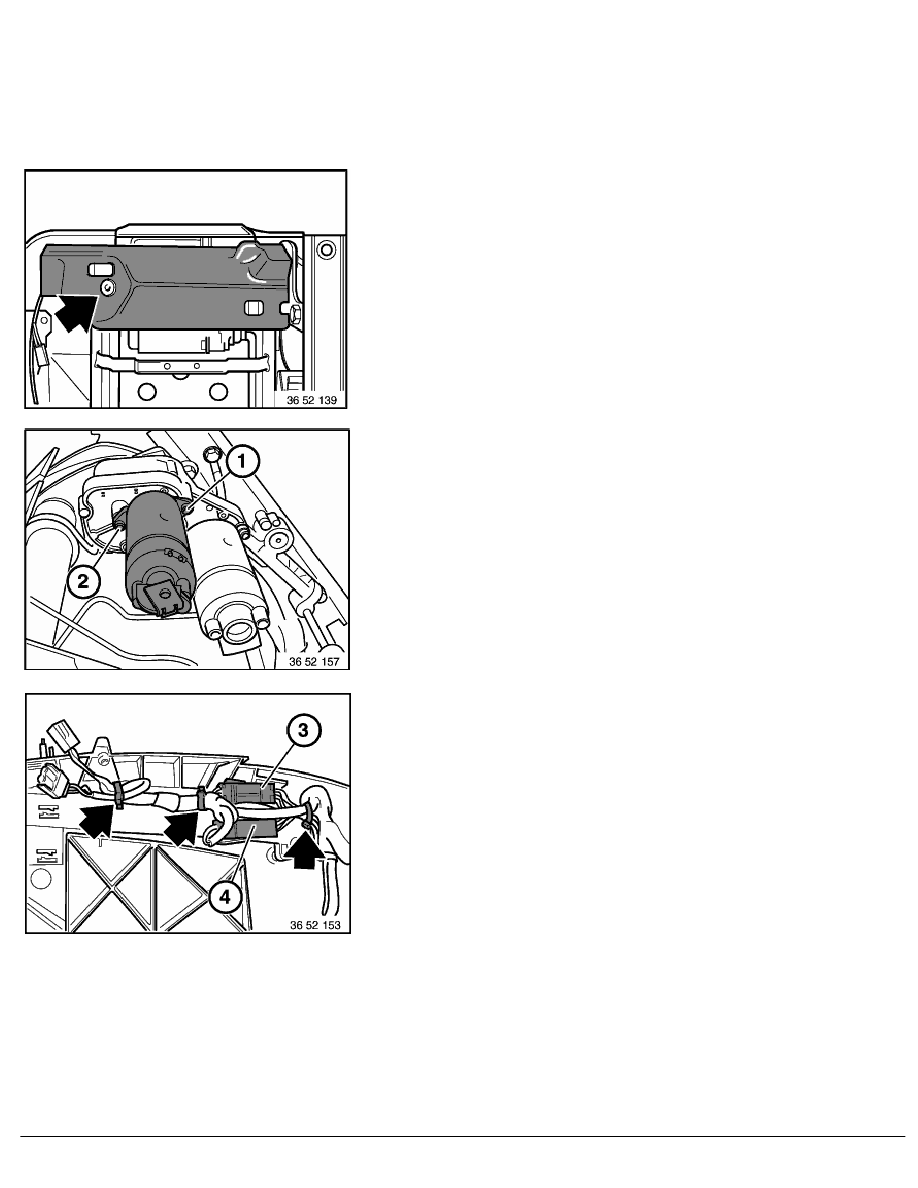

Remove screws and shoe guard.
Remove screws (1 and 2) and remove backrest control drive.
Loosen cable straps and disconnect plug (3).
Unlock and pull off plug receptacle towards rear.
RA Removing and installing/replacing actuator drive for backrest adjustment on fron
