3 Series E36 320i (M50) CONVER
00 00 ...
Checking steering for zero play Steering tie
rods and axle joints, steering gear, sleeves,
flexible disk: checking condition
Turn steering wheel back and forth. In so doing, check for zero
play.
Check steering sleeves, flexible disk and axle and tie rod
sleeves for damage such as e.g. cracks, holes or missing strap
retainers on gaiters.

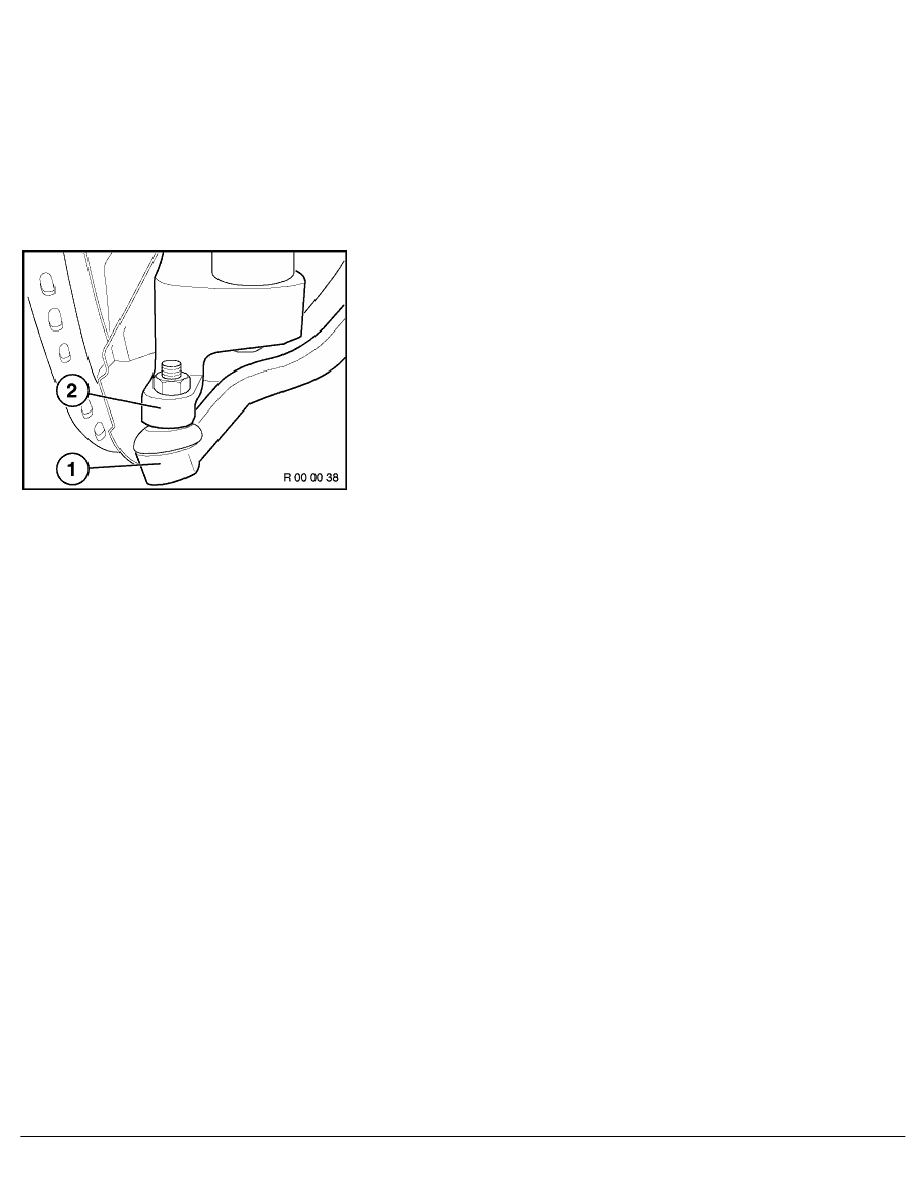

There must be no play between steering arm (2) and tie rod
joint (1).
RA Checking steering for zero play Steering tie rods and axle joints, steering gear
