3 Series E36 320i (M50) COUPE

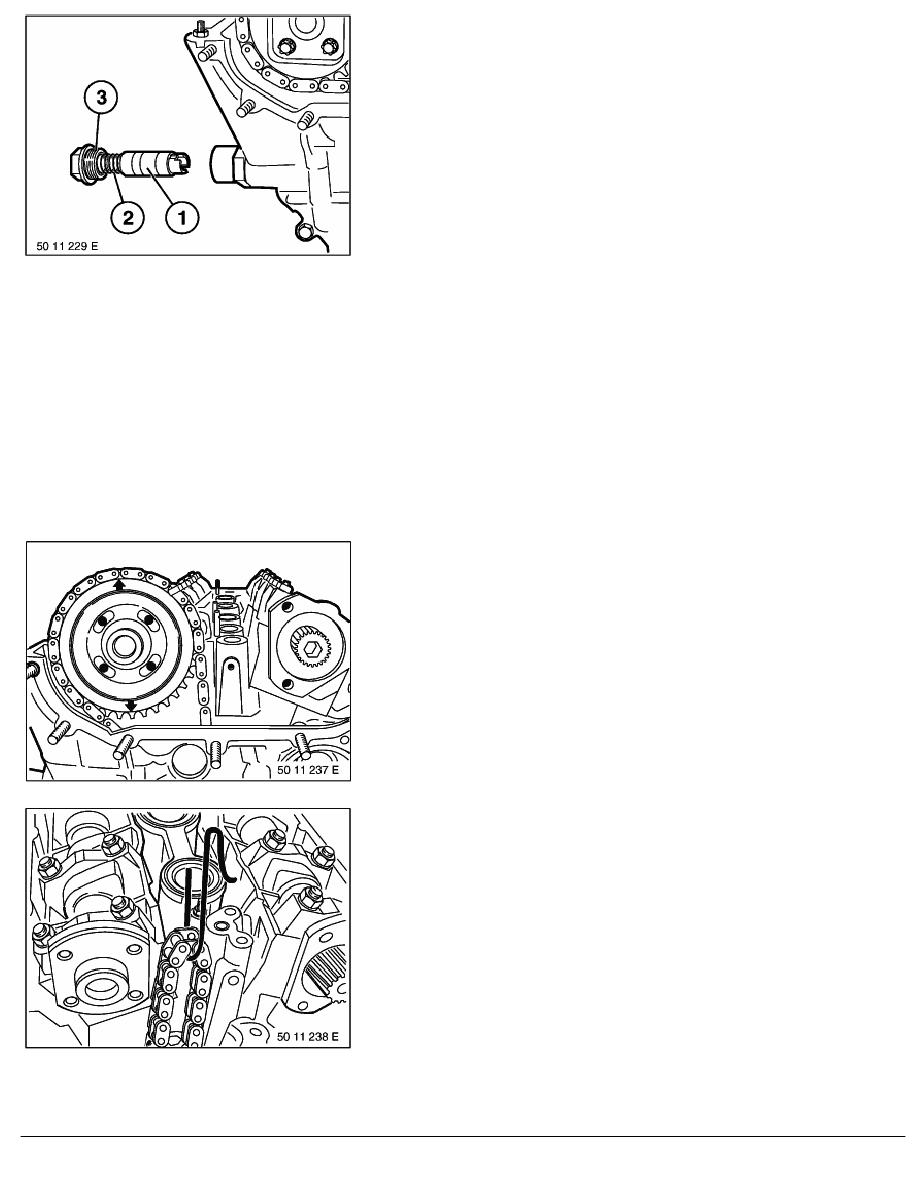

Unscrew bolt 3.
Caution!
Strong spring force.
Remove spring (2) and plunger (1).
Installation:
Insert chain tensioner piston (1) in such a way that the guide
tabs engage in the tensioning rail.
Install spring (2) and bolt (3).
Replace sealing ring.
For tightening torque, refer to Technical Data
Lift off sprocket with chain.
Note:
Prevent chain from slipping down with a piece of wire.
RA Removing VANOS control unit (M50 VANOS)
