3 Series E36 320i (M50) COUPE
Removing tensioning roller and console (M50
VANOS)

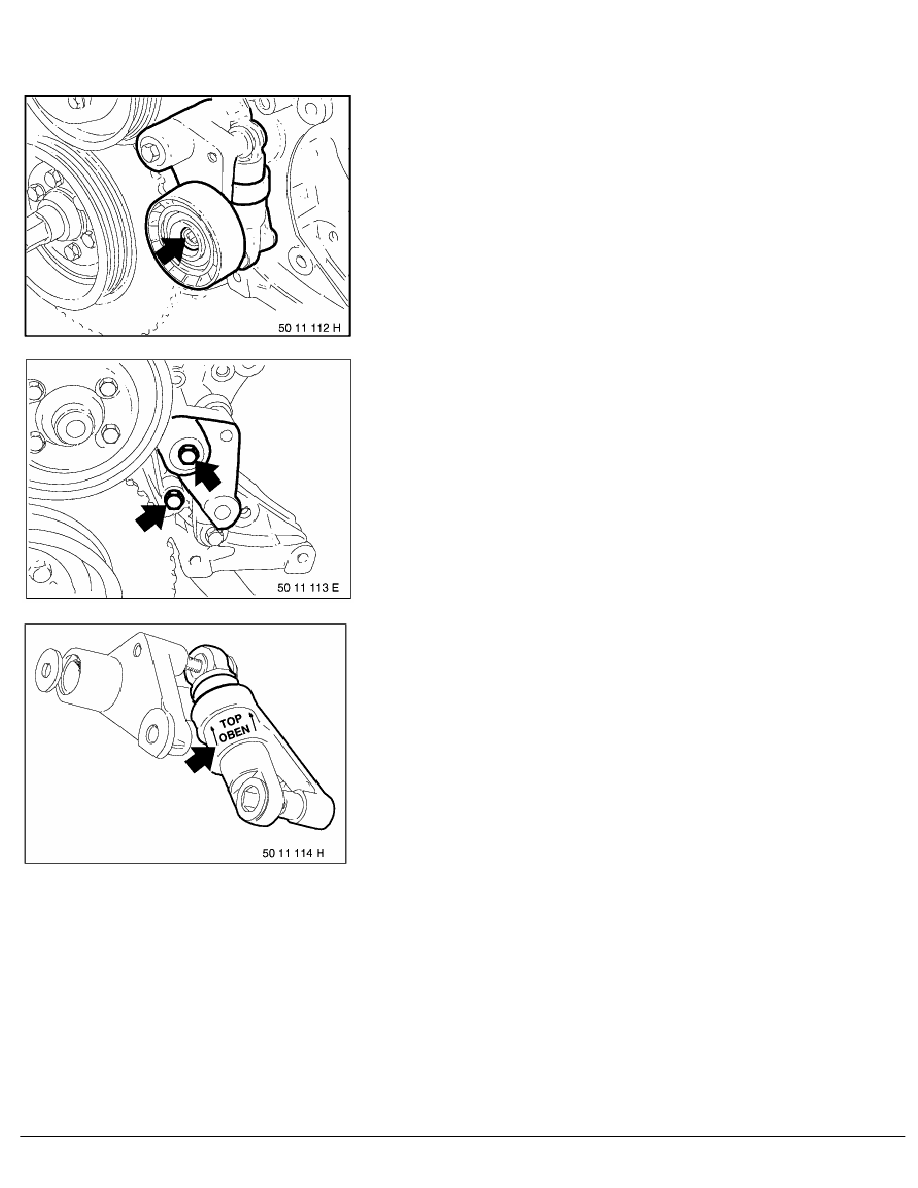

Unscrew tensioning roller.
Unscrew mounting block.
Note:
The hydraulic belt tensioner is filled with oil, so that a removed
element must always be stored standing upright.
Incorrrectly stored elements can normally be bled by compressing
several times.
Installation:
Check installed direction.
RA Removing tensioning roller and console (M50 VANOS)
