3 Series E36 320i (M50) COUPE

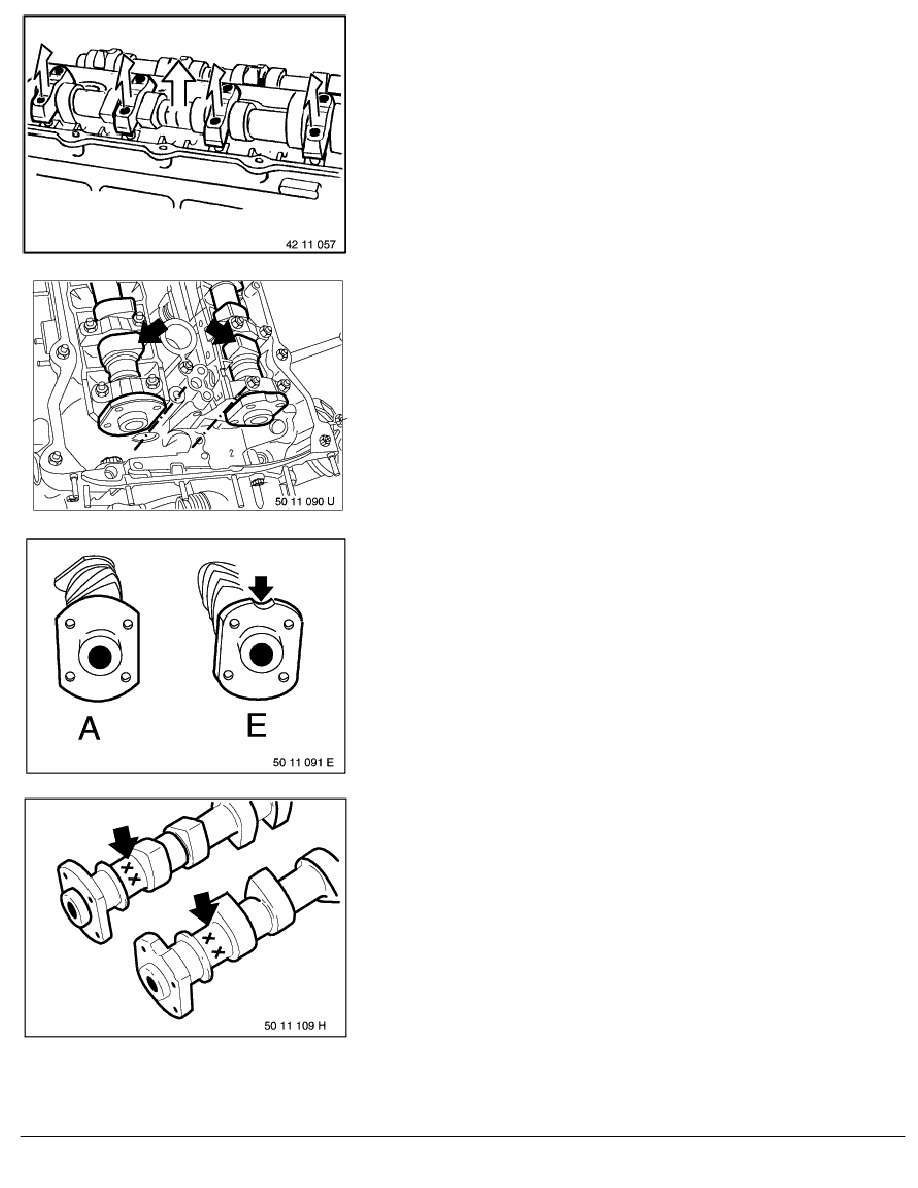

Release and remove special tool.
Lift out bearing covers and camshaft.
Installation:
Install camshafts in such a way that the cam peaks for intake
and exhaust valves in cylinder No. 1 face each other.
Installation:
Identification of camshafts through difference on flange for
sprockets:
E = intake camshaft
A = exhaust camshaft
Identification on camshafts at front:
XX:
A = Exhaust
E = Intake
A = 2.5 liters
B = 2.0 liters
Example: EB = Intake 2.0 liters
RA Removing camshaft (M50)
