3 Series E36 320i (M50) COUPE

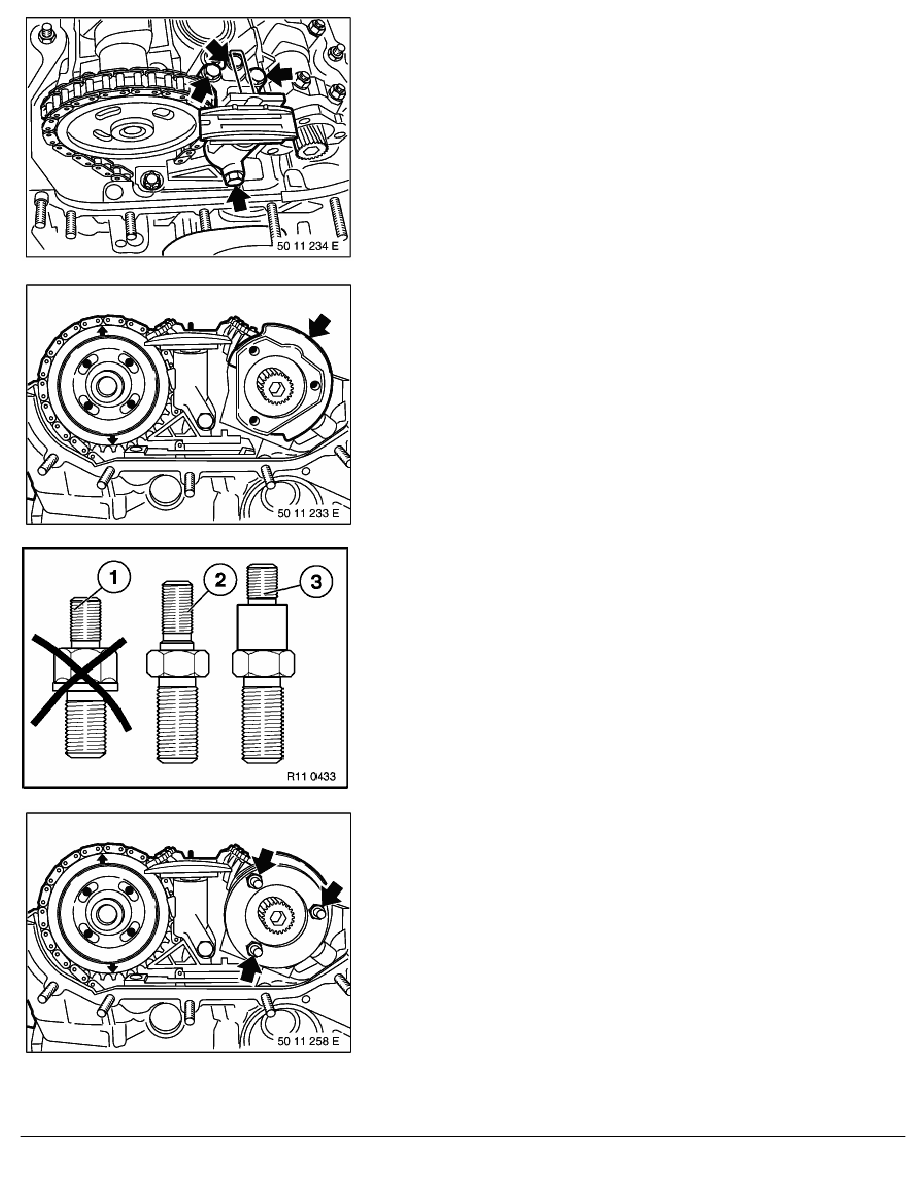

Install secondary chain tensioner.
Fit sensor gear to the intake camshaft.
Caution!
There is a danger of mixing up:
(1)
Studs for cylinder-head covers.
(2)
Studs for thrust washers and sprockets
(version without plate spring).
(3)
Studs for thrust washers and sprockets
(version with plate spring).
Fit thrust washer and tighten down.
Tightening Torque,
refer to Technical Data 11 31 11AZ
RA Replacing camshaft (M50 VANOS)
