3 Series E36 320i (M52) CONVER
18 00 020

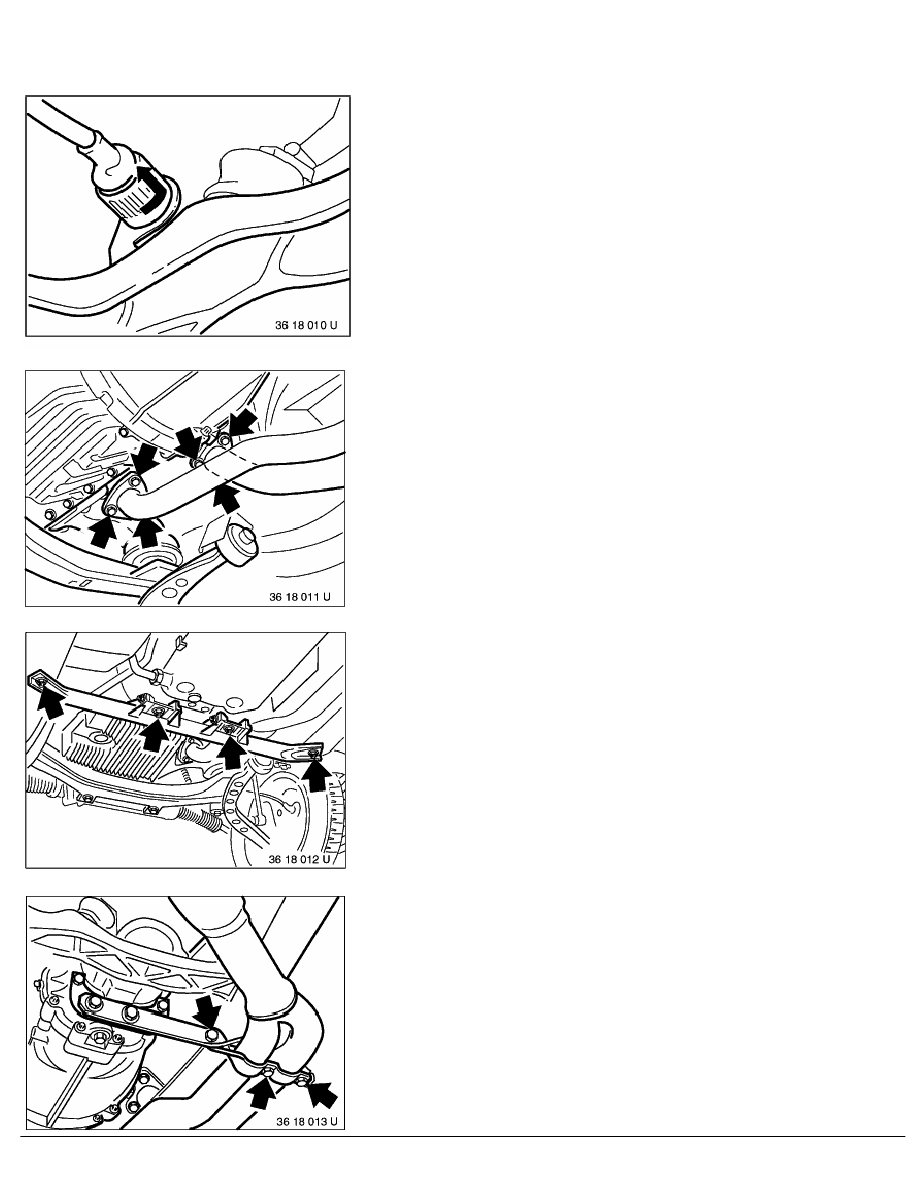

Removing and installing complete exhaust
system (M50/B20, M52/B20, M52/B25, S52)
Disconnect connector for oxygen sensor.
Unclip the cable from the retainer.
Loosen the bolt connection of the flange on the exhaust manifold.
Installation:
Check gaskets and replace if necessary.
Replace self-locking nuts.
Coat threads with copper paste -CRC-, refer to BMW Parts
Service.
Automatic transmission
Remove the suspension.
Note:
The transmission remains supported by the rear bearing.
Loosen the clamp on the exhaust bracket.
Note:
Installation of the exhaust bracket differs for automatic and
manual transmissions.
RA Removing and installing complete exhaust system (M50/B20, M52/B20, M52/B25, S52)
BMW AG - TIS
06.02.2013 23:50
Issue status (12/2007) Valid only until next DVD is issued
