3 Series E36 320i (M52) CONVER
Installation:

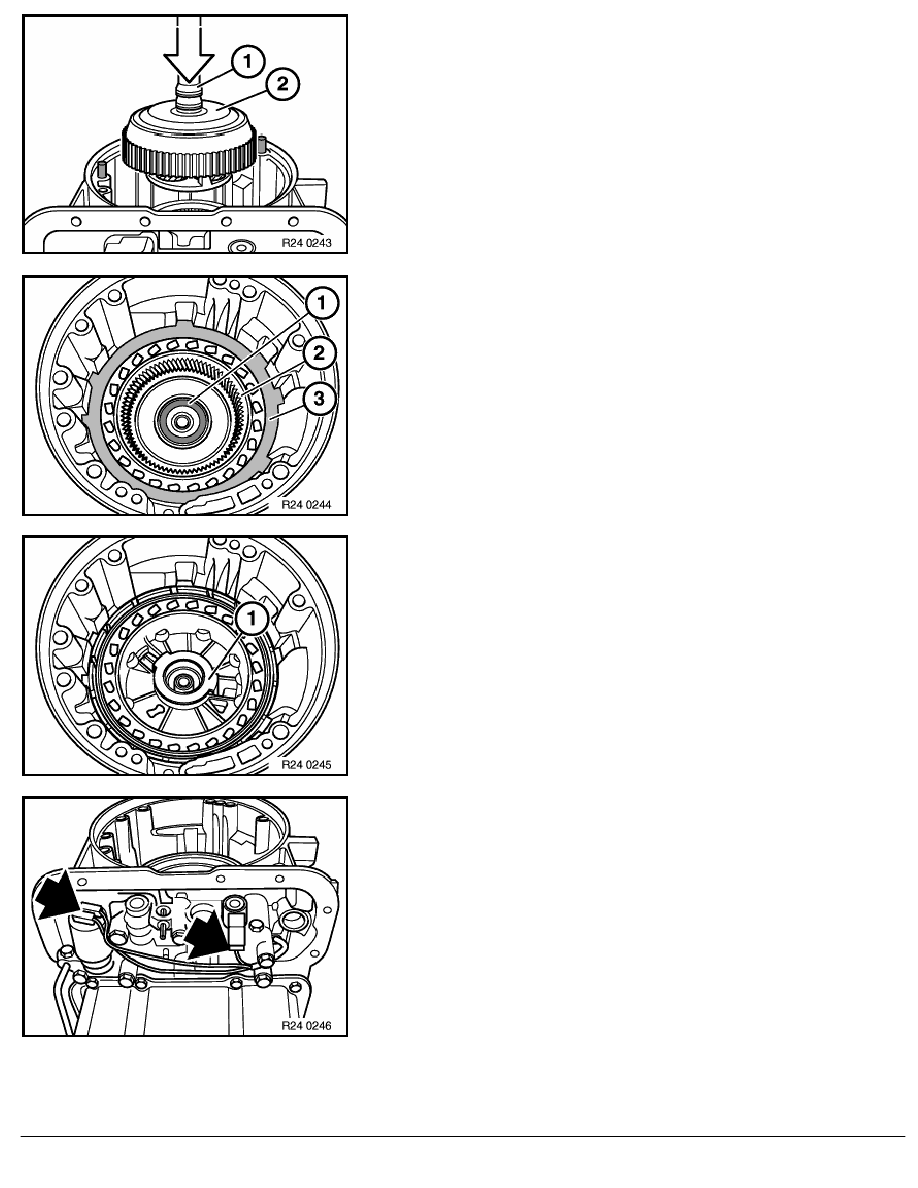

Install turbine shaft (1) and idler (2) in ring gear of
intermediate case.
Remove axial needle bearing (1), ring gear (2) and steel disc (3).
Installation:
Install axial needle bearing (1) with black side facing upwards.
Remove thrust washer (1).
Installation:
Coat thrust washer (1) with Vaseline and install in
intermediate case.
Locking device in thrust washer (1) must locate in recesses of
intermediate case.
Remove cable connector from solenoid valve.
RA Removing and installing/sealing converter bell housing (A4S 270R/310R)
