3 Series E36 320i (M52) CONVER

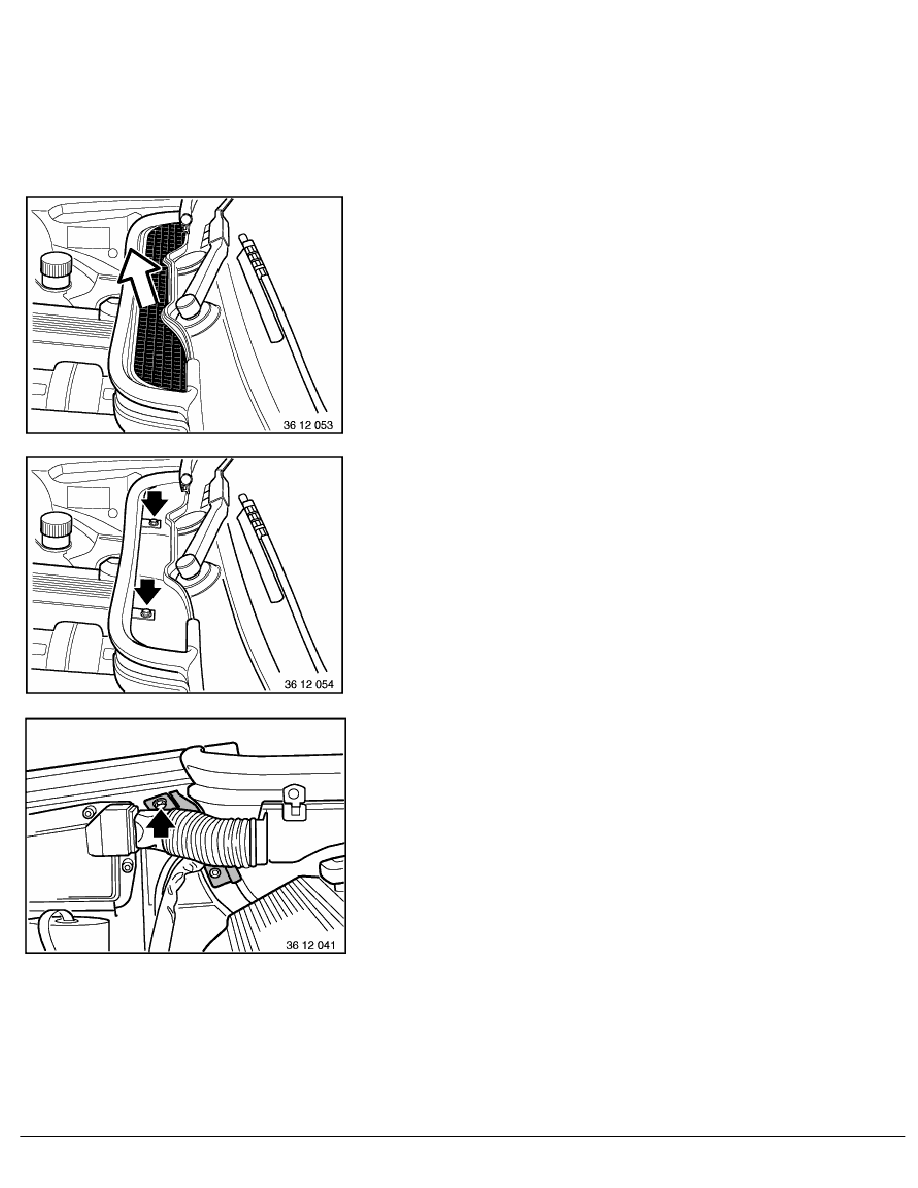

Unscrew left-hand screw.
Pull out air collector in upwards direction.
Note:
Air collector will be difficult to pull out.
M50, M52
Unclip covers.
Unscrew bolts.
Remove cover of injection-valve plate.
Unclip covers and remove screws.
RA Removing and installing/replacing heater and air conditioning fan (M50, M52, S50
