3 Series E36 320i (M52) COUPE

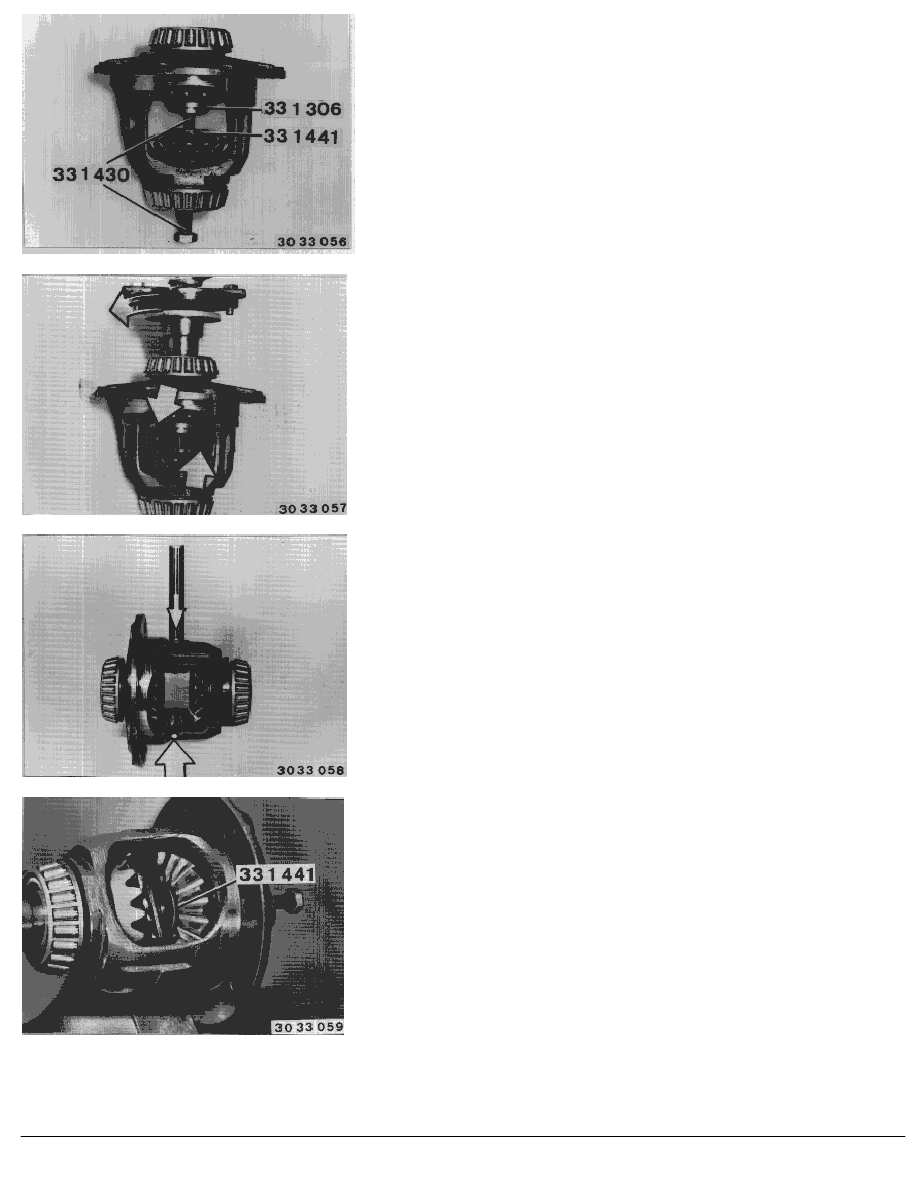

Install special tool 33 1 306 (pressure piece) on one side.
Screw in special tool 33 1 441 (threaded plate) with special tool
33 1 430 (screw).
Tighten special tool bolt to spread differential side gears so far
apart, that the drive flange can just barely be turned.
Install differential pinion gears exactly opposite each other.
Move differential gears to installed position by turning drive flange.
Remove special tools.
Drive in differential gear shaft.
Turn differential pinion gears with the drive flange and stop them
at the highest point of tooth mesh (hardest to turn).
For measurement operation, install special tool 33 1 441
(threaded plate) and special tool 33 1 431 (screw).
If applicable, open up thread plate slightly to make it easier to
insert the dial gage. Screw in bolt far enough, that the shaft gear is
on "block".
