3 Series E36 320i (M52) COUPE

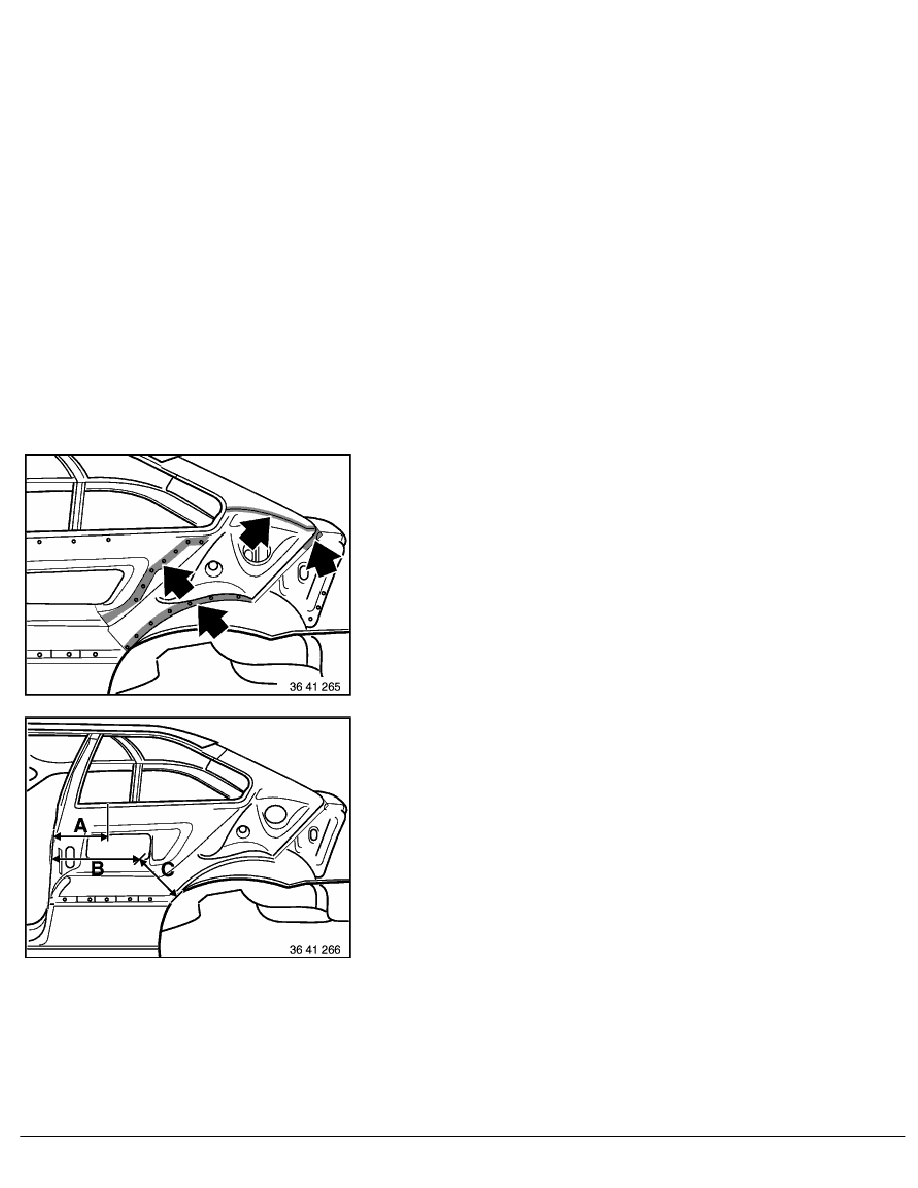

Determine location and mark cutting line on C-pillar.
Cut through sheet metal.
Distance A = 120 mm

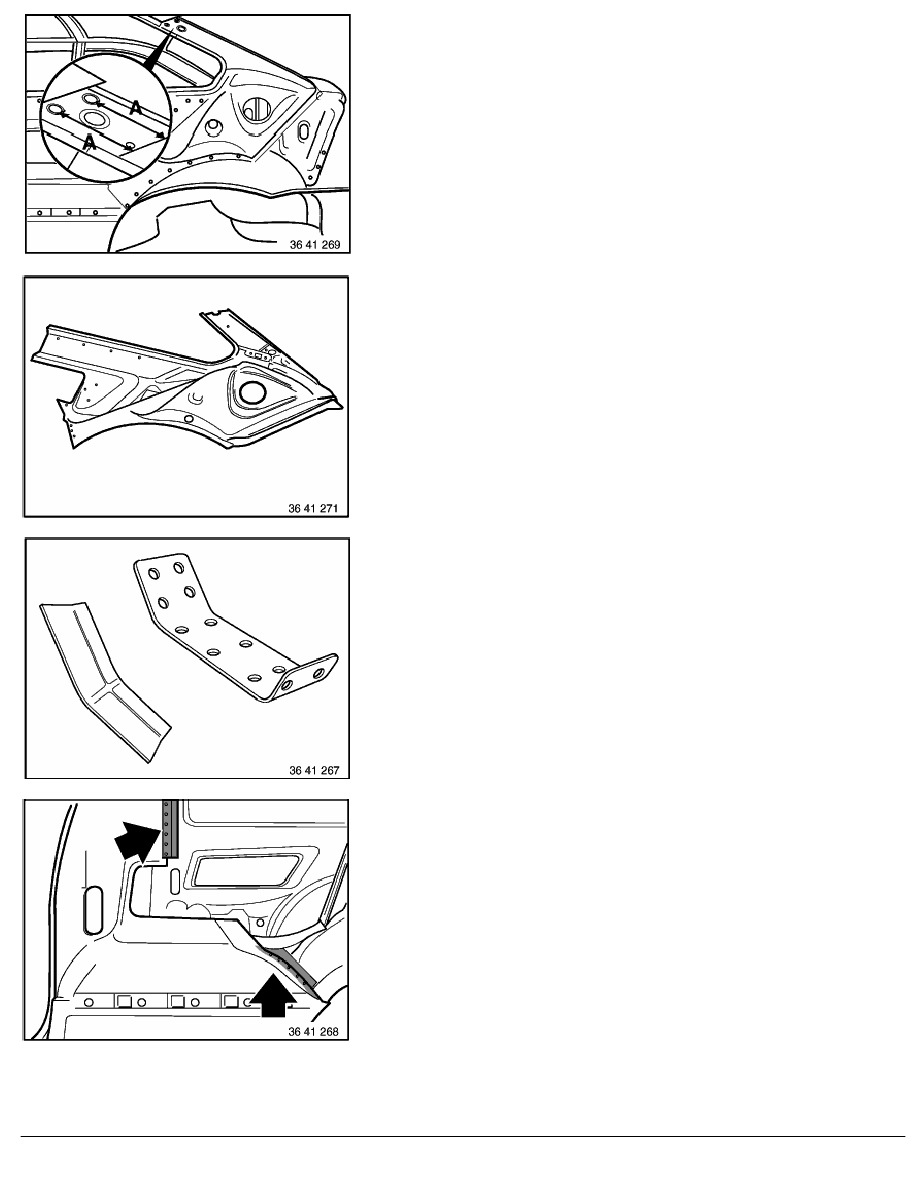

Take off C-pillar.
Straighten and grind joint surfaces.
Fit in and cut side rib to size.
Produce reinforcement for top side rib connection.
Width = 60 mm
Drill holes in reinforcement for plug welding.
Produce reinforcement for bottom side rib connection.
Width = 60 mm
Coat reinforcements with zinc dust paint.
RA Replacing c-pillar, rear left (side panel removed)
