3 Series E36 320i (M52) COUPE

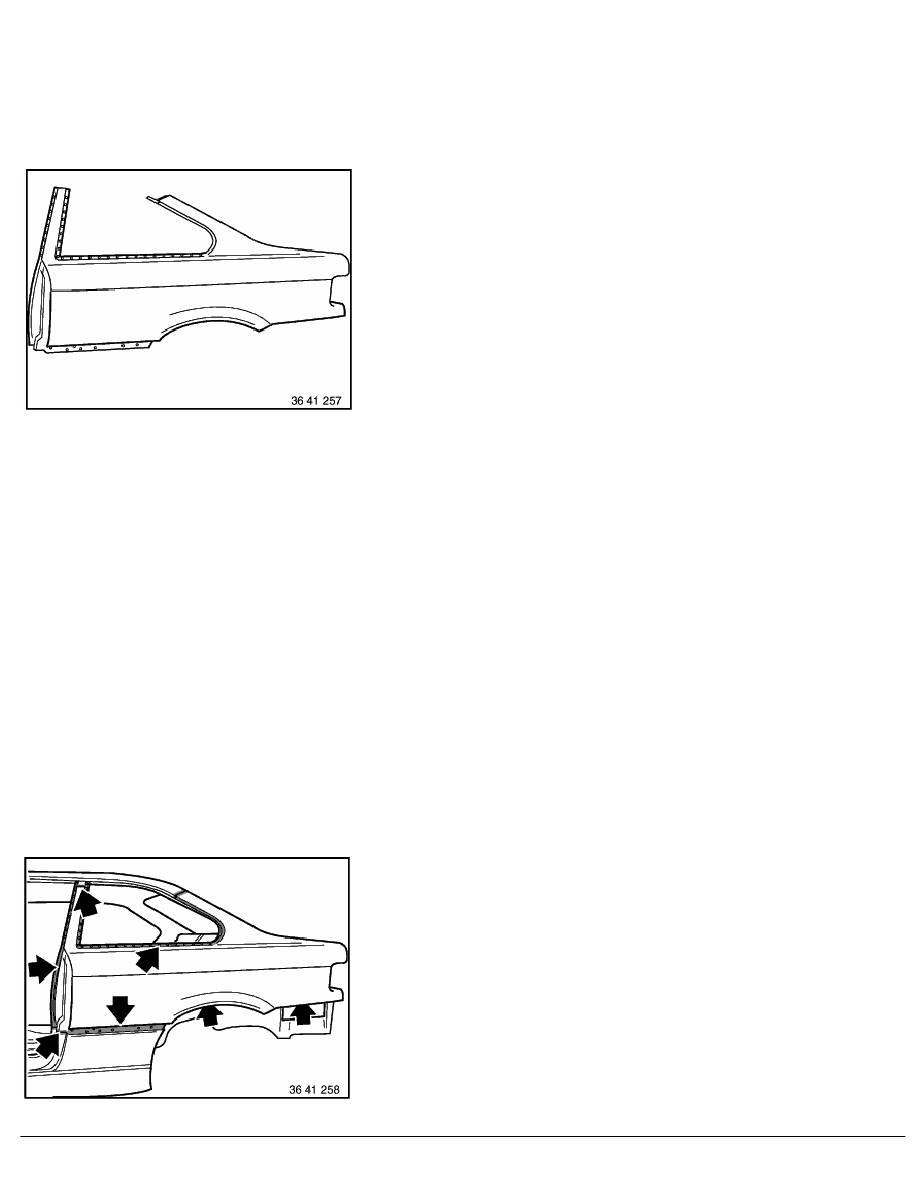

Spot weld rear window frame (1).
Braze side panel/roof joint (2).
Caution!
If necessary, protect the roof zone with heat protecting paste.
Produce brazed seam at bracket for side window seal.
Grind down mating surfaces.
Cringe edge of wheel housing.
Tin out and grind down joints.
Braze side panel/tail panel joint.
RA Replacing complete left rear side panel (2-door models)
