3 Series E36 320i (M52) COUPE
Installation:
Automatic belt tensioner must engage in tabs on the backrest
shell.
Remove screw and remove bearing.
Caution!

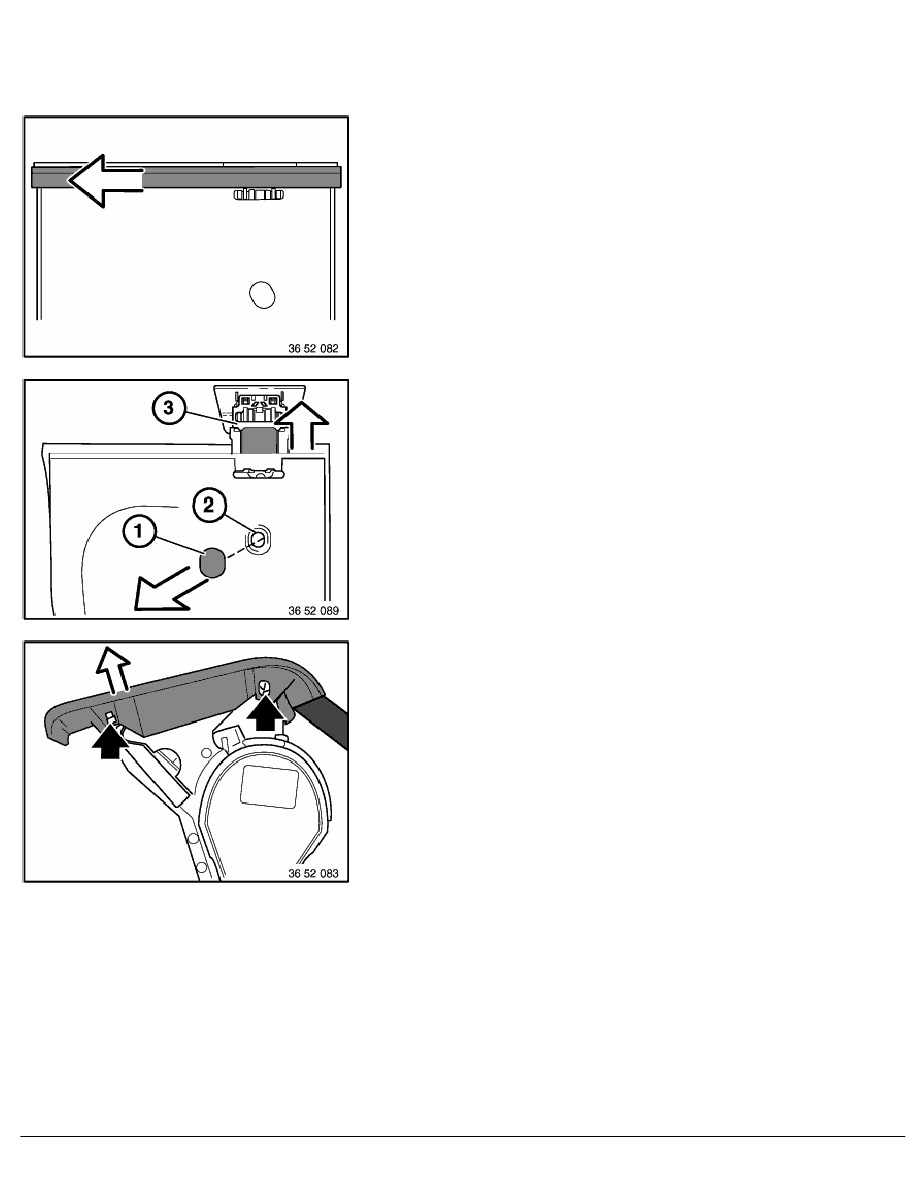

Carefully unclip cover strip at top as the short piece could
easily be broken off.
Unclip cover all around.
Unclip retainers and remove cover.
Note:
Remove all retainer remainders from the padding and cover.
Installation:
Secure cover to padding at positions shown in the picture.
RA Removing and installing or replacing cover for left or right rear seat backrest
