3 Series E36 323i (M52) COUPE
Produce reinforcement plate for C-pillar and fit in.
Width = approx. 60 mm
Drill holes for plug welding.
Clean welding surfaces.
Slide reinforcement plate into remaining C-pillar section approx.
30 mm deep.
Plug weld.
Grind down welded surfaces.
Produce reinforcement plate for entrance joint and fit in.
Width = approx. 60 mm
Drill holes in C-pillar for plug welding of the reinforcement plate.

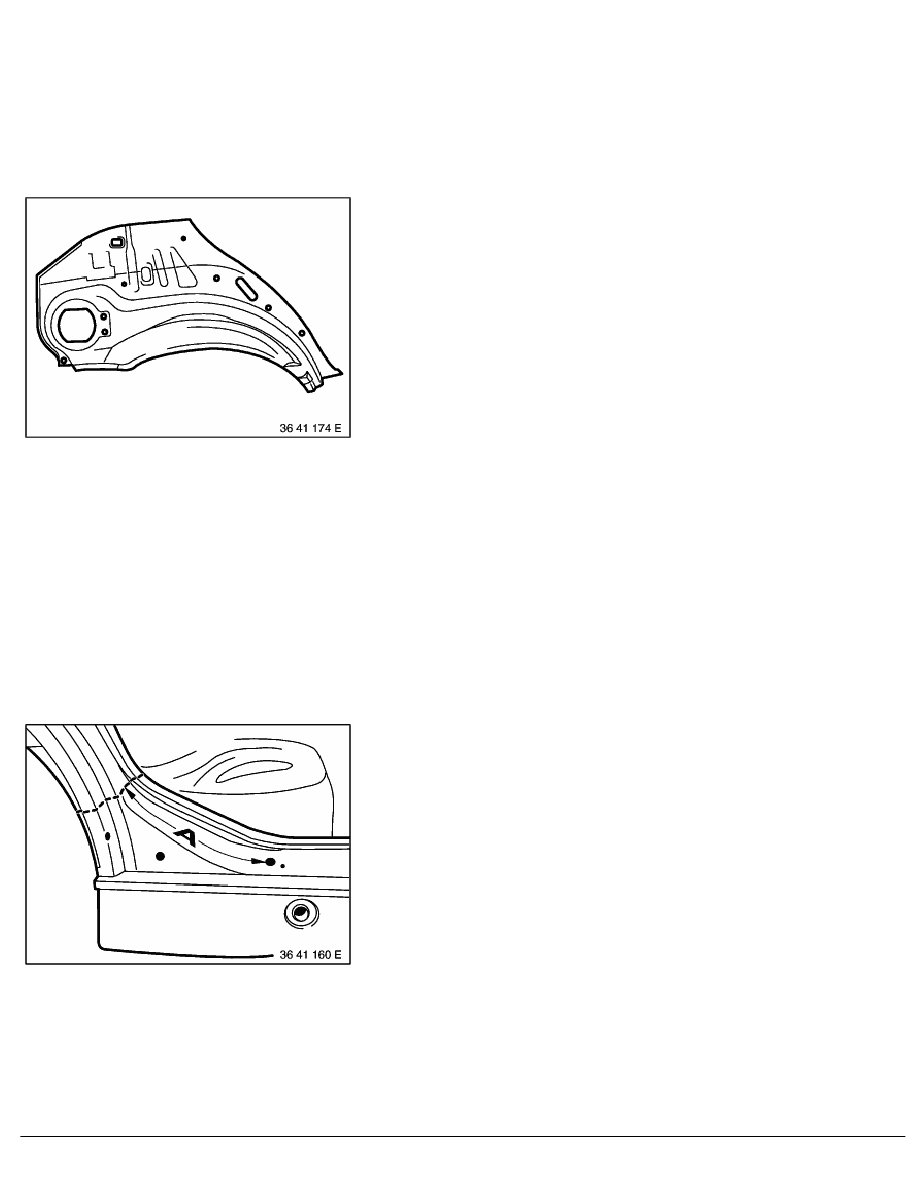

RA Replacing outer section of left or right rear wheel housing (side panel removed)
