3 Series E36 323ti (M52) COMP

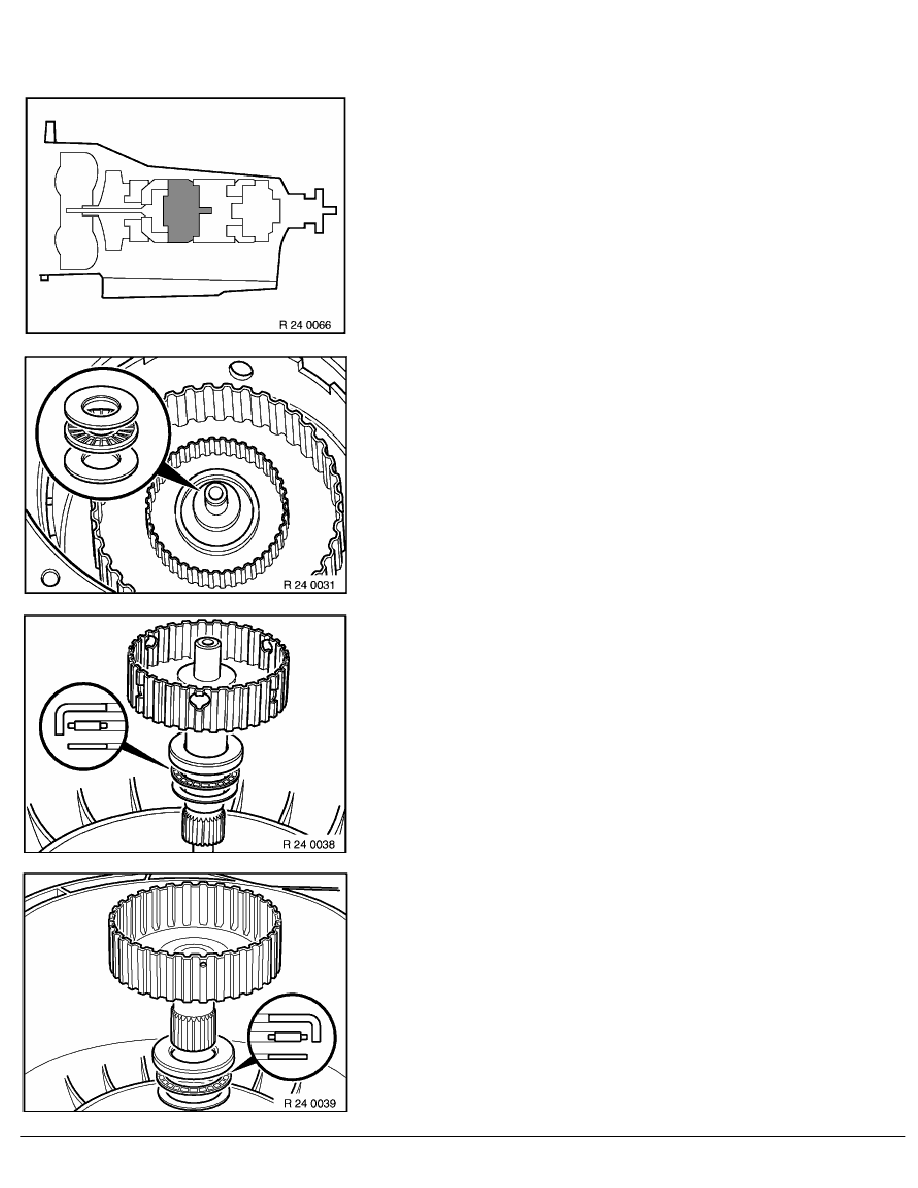

Lift out pot.
Lift out sun gear.
Installation:
Check installed direction.

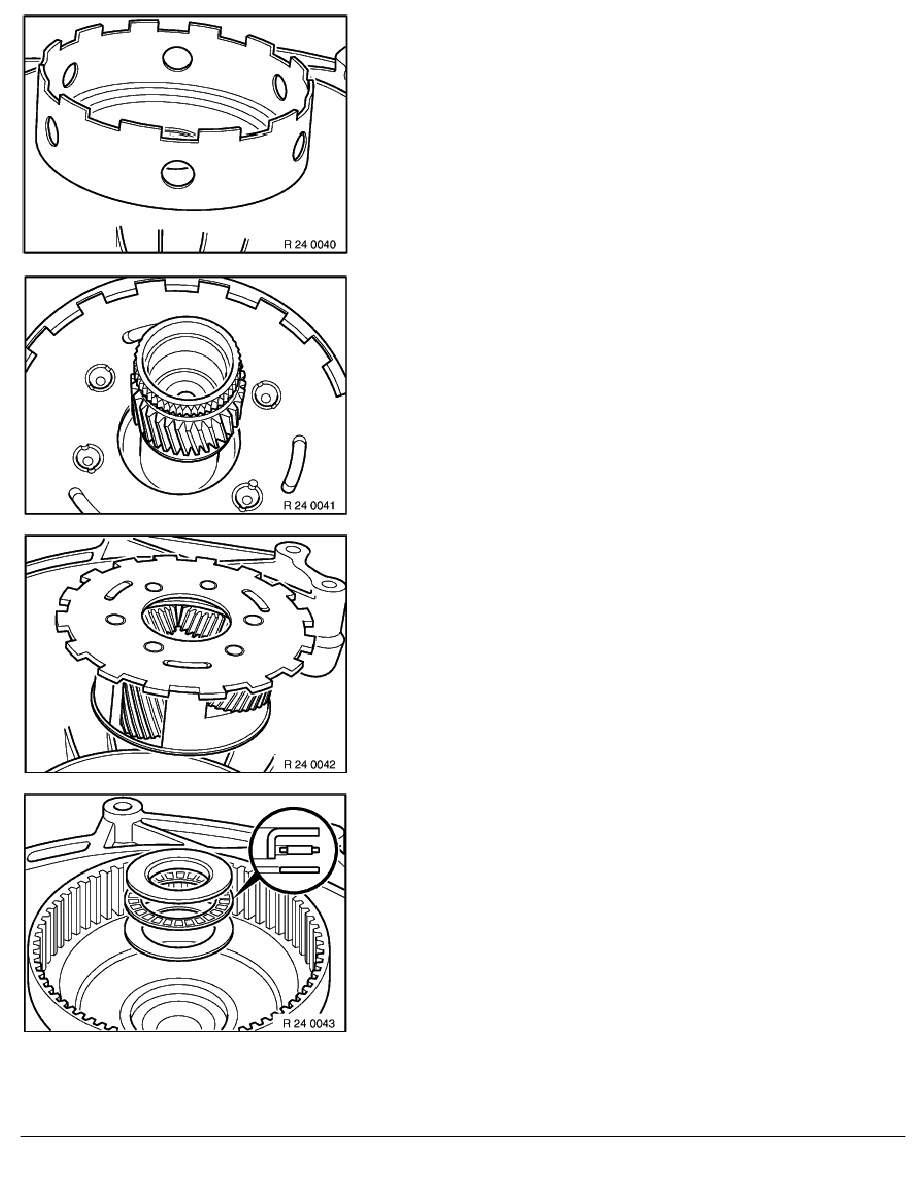

Lift out planet carriers I and II.
Remove thrust bearing and shaft with hollow gear.
RA Dismantling and assembly / replacing planetary gear sets I and II
