3 Series E36 323ti (M52) COMP
25 16 080
Removing and installing or replacing selector
lever
Remove mounting block,
refer to 25 16 050

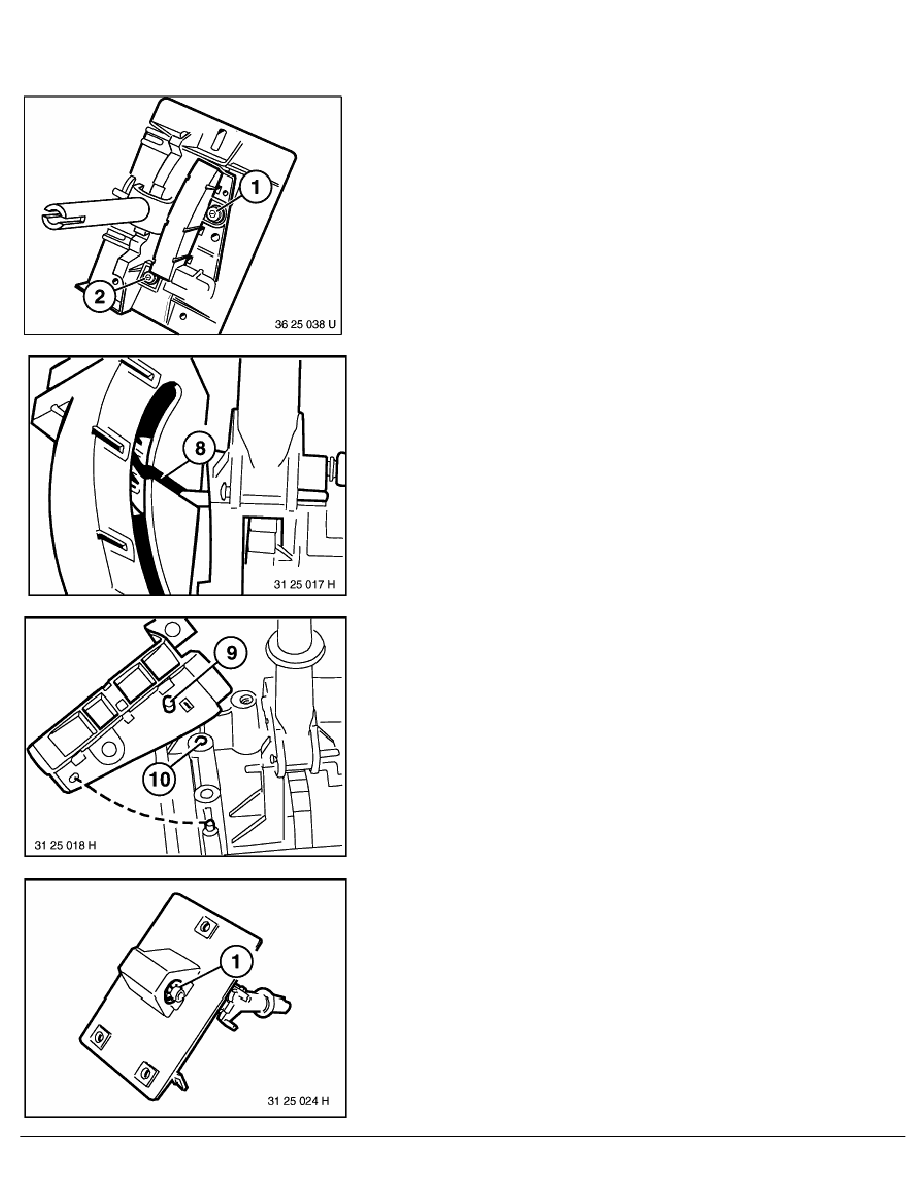

Remove transmission switch after unscrewing screws (1 and 2).
Installation:
Screws are micro-encapsulated and must be replaced after
each removal.
For tightening torque,
refer to Technical Data.
Move selector lever until transmission switch can be taken off
drive pin through slot (3).
Installation:
Bead (9) on transmission switch must engage in bore (10).
Pry off retainer (1).
Installation:
Replace retainer (1).
Drive out shaft pin.
Installation:
Lubricate bearing surfaces with Klüber Polylub GLY 801 (refer
to BMW Parts Service).
RA Removing and installing or replacing selector lever
